Luggage Hook Tie Down - 3rd Row Seat Back - LH - Remove And Replace: Remove

Open the LH falcon wing door.
Open the liftgate.
Fold the 2nd row 60 seat downwards.
Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
Fold the LH 3rd row seat downwards.
Remove the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .

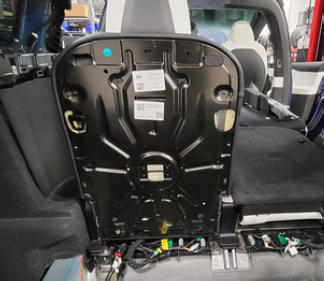

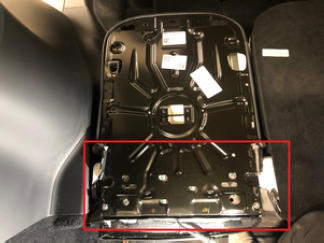

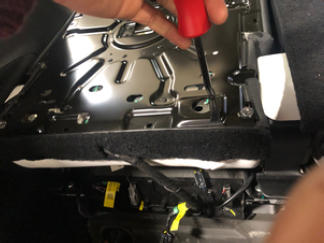

Release the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.
NOTE: Pull the tabs inward, and then upwards to release.

Tip: Use of the following tool(s) is recommended:
- Clip pry tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

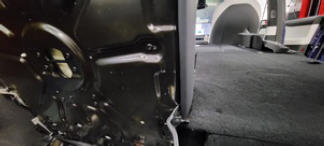

Unfold the LH 3rd row seat into original position.
NOTE: Leave the headrest in folded position.

Courtesy of TESLA, INC.

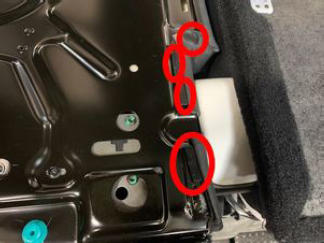

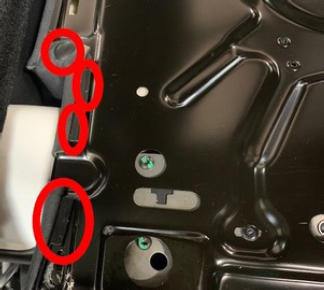

Release the J-hook clip that attaches the upper half of the LH 3rd row seat upholstery to the seat.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

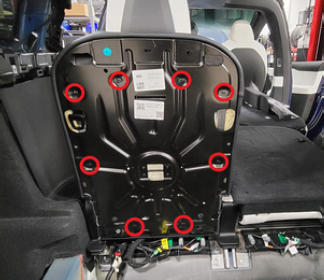

Drill out the rivets (x8) that attach the rear seat back panel to the LH 3rd row seat frame.
Tip: Use of the following tool(s) is recommended:
- Drill 1/2 in chuck electric
- 3/16" Hex bit
Courtesy of TESLA, INC.

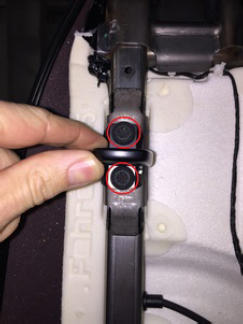

Remove the bolts (x2) that attach the LH 3rd row seat back luggage hook tie down to the seat frame, and then remove the hook tie down from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- Torx Plus T45 socket
Courtesy of TESLA, INC.
