Headrest - 3rd Row Seat - LH - Remove And Replace: Install

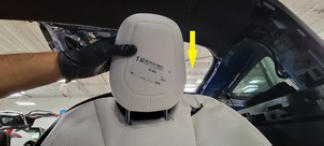

  1. Position the LH 3rd row seat headrest on the vehicle, and then feed the headrest actuator cable into the headrest guide opening.

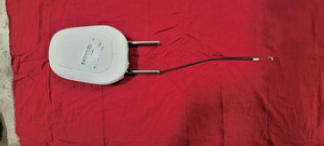

    G15404710Courtesy of TESLA, INC.
    G15404711Courtesy of TESLA, INC.
    G15404712Courtesy of TESLA, INC.

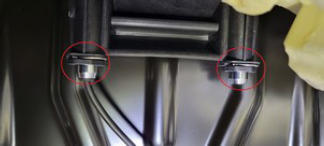

  2. Install the retaining clips (x2) that attach the LH 3rd row seat headrest to the seat back.

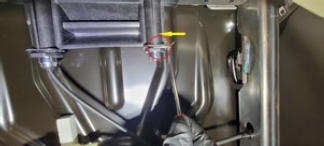

    G15404713Courtesy of TESLA, INC.

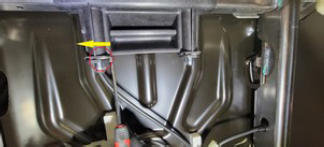

    G15404714Courtesy of TESLA, INC.
    G15404715Courtesy of TESLA, INC.

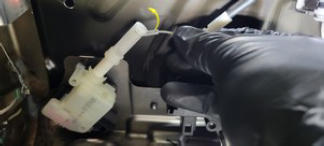

  3. Install the LH 3rd row seat headrest actuator cable on the actuator.

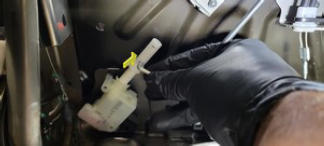

    G15404716Courtesy of TESLA, INC.
    G15404717Courtesy of TESLA, INC.

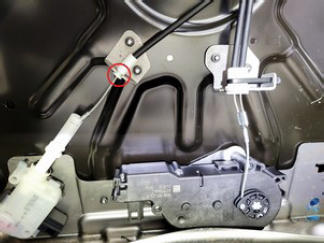

  4. Install the LH 3rd row seat headrest actuator cable to the cable tether mount.
    G15404718Courtesy of TESLA, INC.

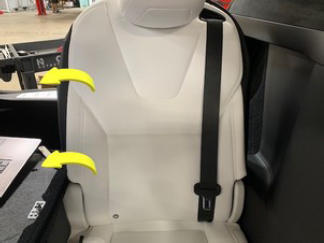

  5. Fold the seat upholstery and cushion assembly over the seat frame.
    NOTE: Use the folding function to assist with tucking the upholstery.
    G15404719Courtesy of TESLA, INC.

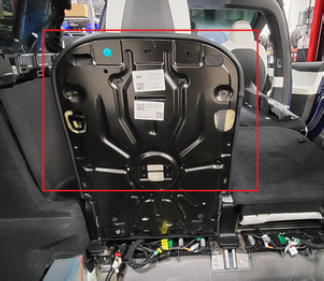

  6. Engage the J hook clip that attaches the upper half of LH 3rd row seat upholstery to the seat.
    NOTE: Fold the seat to a workable position, start at one end of the J hook clip, and then fold the clip inwards until the other end of the upholstery is fully tucked.
    G15404720Courtesy of TESLA, INC.

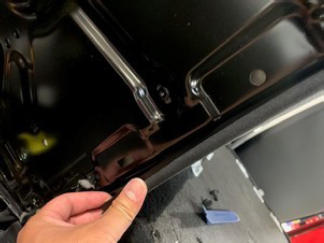

    G15404721Courtesy of TESLA, INC.

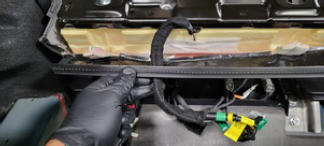

  7. Disconnect the LH 3rd row seat connectors (x2), and then route the connectors through the seat upholstery.

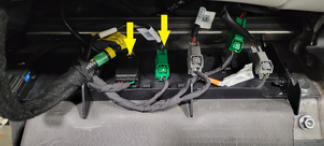

    G15404722Courtesy of TESLA, INC.
    G15404723Courtesy of TESLA, INC.
  8. Connect the LH 3rd row seat connectors (x2).

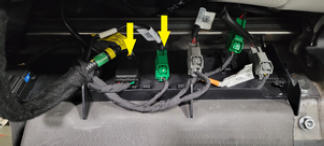

    G15404724Courtesy of TESLA, INC.

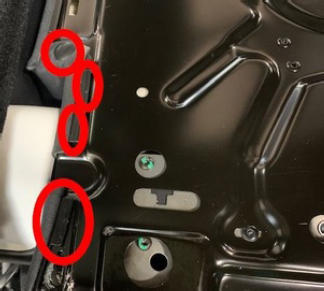

  9. Engage the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.

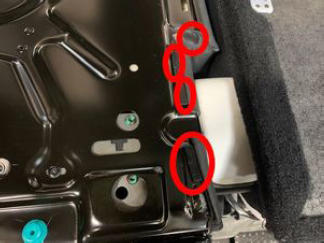

    G15404725Courtesy of TESLA, INC.
    G15404726Courtesy of TESLA, INC.

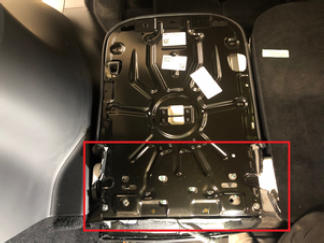

    G15404727Courtesy of TESLA, INC.
  10. Install the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .
  11. Install the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace) .
  12. Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  13. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  14. Unfold the LH and RH 3rd row seats into original position.
  15. Close the liftgate.
  16. Unfold the 2nd row 40 and 60 seats into original position.
  17. Close the LH and RH falcon wing doors.
