Frame - Seat Cushion - 3rd Row - Remove And Replace: Install

Position the 3rd row seat cushion frame onto the 3rd row seats.

Courtesy of TESLA, INC.
Install new LH and RH outer 3rd row seat frame bolts (x4).
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T45 socket
Courtesy of TESLA, INC.
Install new LH and RH front inner 3rd row seat frame bolts (x2).
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T45 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

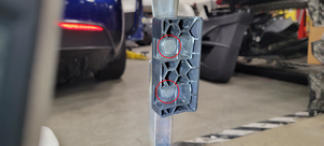

Position the LH and RH 3rd row seat rear crush plastics to the seat frame, and then install the push clips (x4).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

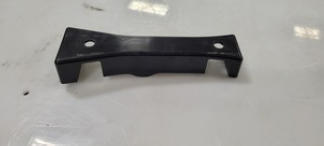

Position the LH and RH 3rd row seat front crush plastics to the seat frame, and then install the push clips (x4).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the 3rd buckle assembly, but do not install the lower seat cushion yet. See Buckle - 3rd Row (Remove and Replace) .

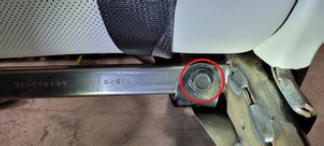

Install the bolt that attaches the LH 3rd row seatbelt anchor to the seat cushion frame. Repeat this step for the RH bolt.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 14 mm socket
Courtesy of TESLA, INC.
Install new bolts (x2) that attach the rear inner 3rd row seat frame to the vehicle.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T45 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the 3rd seat assembly. See SEAT ASSEMBLY - 3RD ROW (REMOVE AND REPLACE) .
