Cushion - Seat - 3rd Row - Remove And Replace: Remove

  1. Open the liftgate.
  2. Remove the trunk rear load floor.

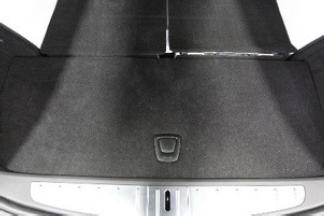

    G15404644Courtesy of TESLA, INC.
  3. Remove the trunk tub floor insulator.

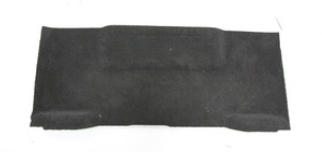

    G15404645Courtesy of TESLA, INC.
  4. Slide the trunk carpet off of the anchors, and then remove the carpet from the vehicle.

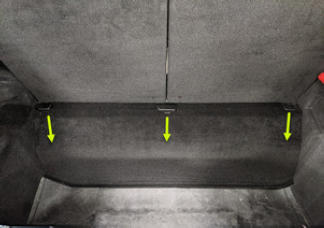

    G15404646Courtesy of TESLA, INC.
  5. Release the clips (x4) that attach the 3rd row seat harness trays to the 3rd row seat frame.

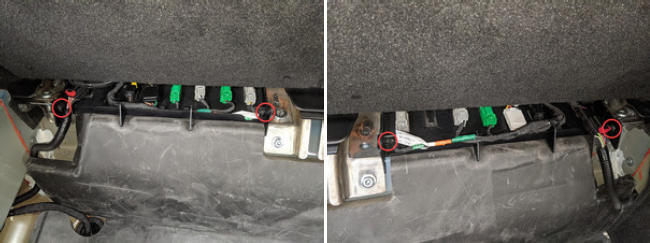

    G15404647Courtesy of TESLA, INC.
  6. Release the tab and slide the 3rd row seat cushion connectors (x4) off the 3rd row harness trays, and then disconnect the electrical harness from the connectors.

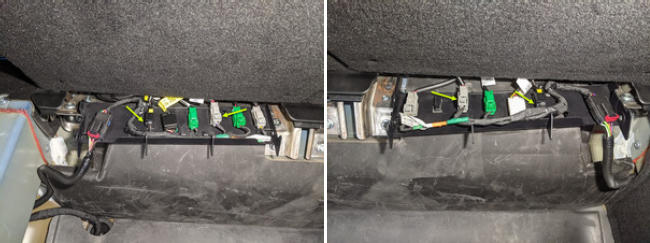

    G15404648Courtesy of TESLA, INC.
  7. Carefully lift the front of the 3rd row seat cushion from the frame.
    CAUTION: Do not strain the electrical harness on the underside of the cushion.

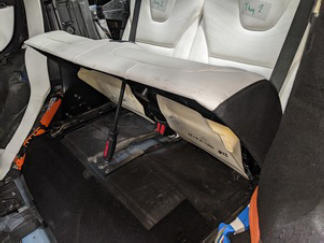

    G15404649Courtesy of TESLA, INC.
  8. Disconnect the electrical harness from the 3rd row seat cup holder connector.

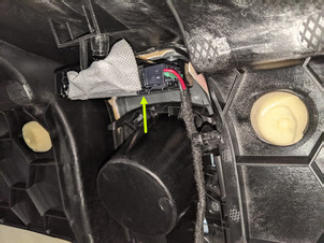

    G15404650Courtesy of TESLA, INC.
  9. Release the clips (x3) that attach the electrical harness to the 3rd row seat cup holder, and set the electrical harness aside.

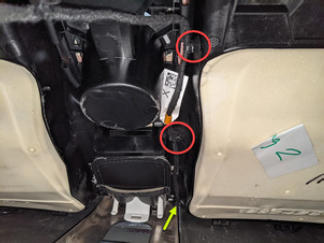

    G15404651Courtesy of TESLA, INC.

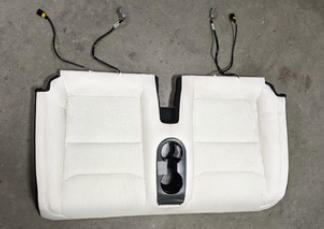

  10. Remove the 3rd row seat cushion from the vehicle.
    G15404652Courtesy of TESLA, INC.
