Cushion - Seat - 3rd Row - Remove And Replace: Install

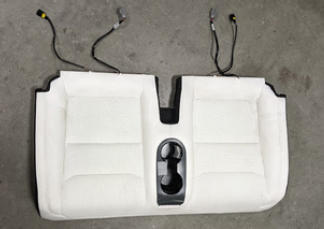

- Install the 3rd row seat cushion to the 3rd row seat frame.
 Courtesy of TESLA, INC.
|

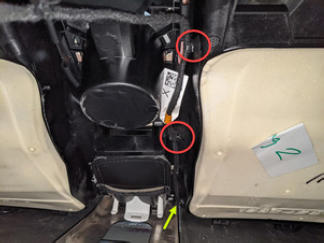

- Fasten the clips (x3) that attach the electrical harness to the 3rd row seat cup holder.
 Courtesy of TESLA, INC.
|

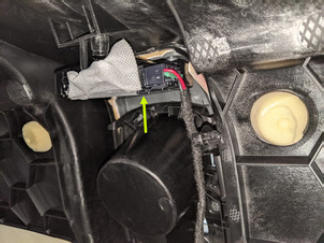

- Connect the electrical harness to the 3rd row seat cup holder connector.
 Courtesy of TESLA, INC.
|

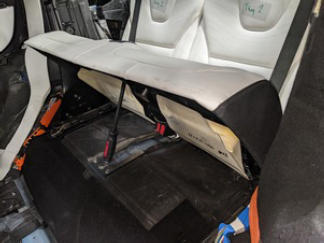

- Lower the front of the 3rd row seat cushion to the seat frame.
 Courtesy of TESLA, INC.
|

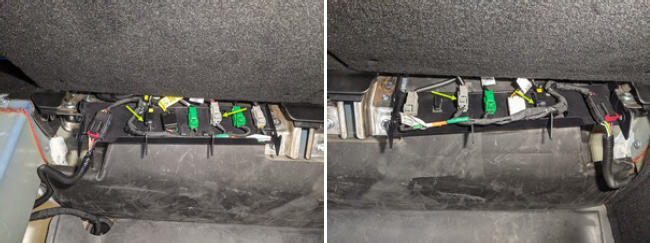

- Connect the electrical harness to the 3rd row seat cushion connectors (x4), slide the connectors onto the 3rd row harness trays, and then fasten the tabs.
 Courtesy of TESLA, INC.
|

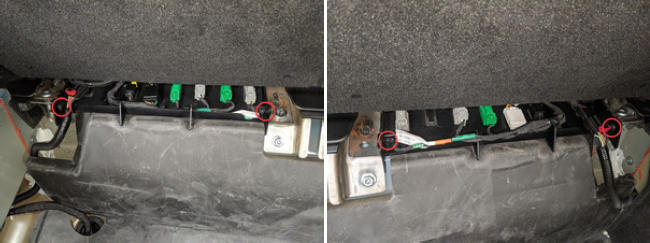

- Fasten the clips (x4) that attach the 3rd row seat harness trays to the 3rd row seat frame.
 Courtesy of TESLA, INC.
|

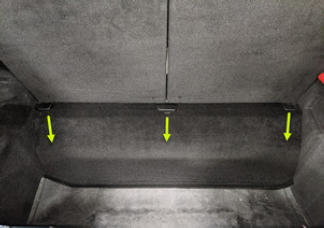

- Install the trunk carpet into the trunk, and then slide the carpet onto the anchors.
 Courtesy of TESLA, INC.
|

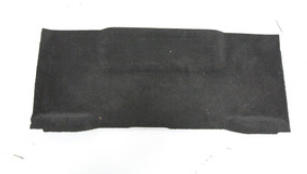

- Install the trunk tub floor insulator.
 Courtesy of TESLA, INC.
|

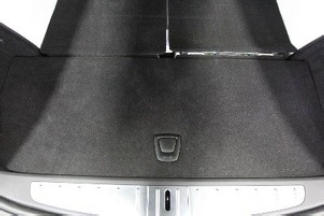

- Install the trunk rear load floor.
 Courtesy of TESLA, INC.
|
- Close the liftgate.
