Trim - Underbelly - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.
  3. Remove the bolts (x2) that attach the LH 2nd row seat underbelly trim to the seat assembly.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

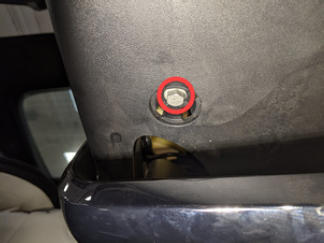

    G15405229Courtesy of TESLA, INC.

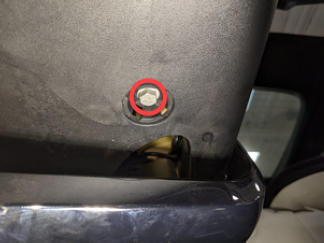

    G15405230Courtesy of TESLA, INC.
  4. Release the clips (x4) that attach the LH 2nd row seat underbelly trim to the seat assembly.
    CAUTION: Do not pull the trim away from the seat assembly as the switch harness is still connected.

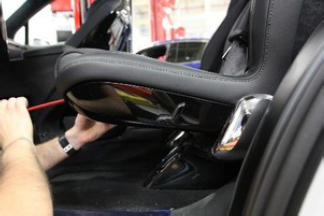

    G15405231Courtesy of TESLA, INC.

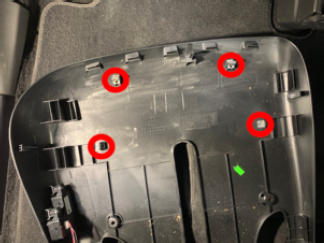

    G15405232Courtesy of TESLA, INC.
  5. Disconnect the LH 2nd row seat underbelly trim electrical connector, and then remove the trim from the assembly.

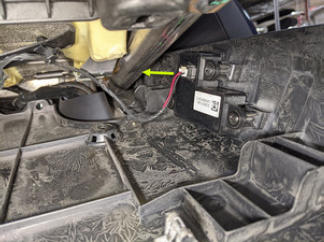

    G15405233Courtesy of TESLA, INC.
