Trim - Underbelly - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Install

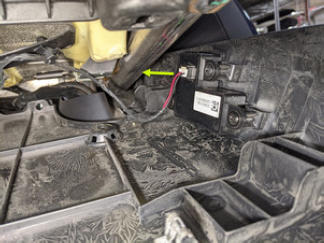

Position the LH 2nd row seat underbelly trim onto the LH 2nd row seat assembly, and then connect the electrical connector.

Courtesy of TESLA, INC.

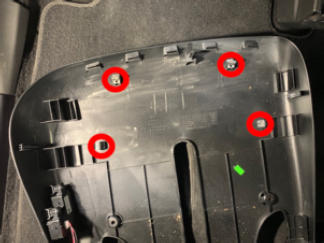

Secure the clips (x4) that attach the LH 2nd row seat underbelly trim to the seat assembly.

Courtesy of TESLA, INC.

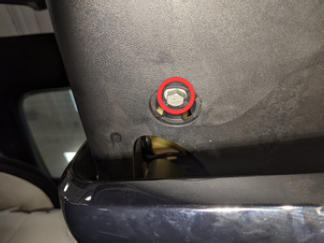

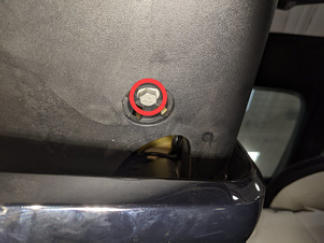

Install the bolts (x2) that attach the LH 2nd row seat underbelly trim to the seat assembly.
8 N.m (5.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the LH falcon wing door.
Raise the LH front window and close the LH front door.
