Trim - Inner - Seat Post - 2nd Row - LH - Remove And Replace: Remove
- Open the LH and RH front doors.
- Lower the LH and RH front windows.
- Open the LH and RH falcon wing doors.
- Move the LH and RH front seats forward.
- Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace)
.
- Release the clips (x8) that attach the RH rear sill panel trim to the vehicle, and then remove the trim from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- Clip pry tool
- Plastic trim tool
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace)
.

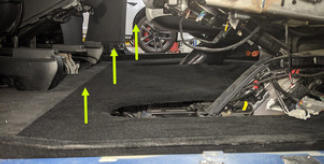

- With assistance, release the clips (x5) that attach the 2nd row mid floor board to the vehicle, lift the front of the floor board upwards, and then remove the floor board from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release the clips (x4) that attach the LH 2nd row seat post inner trim to the vehicle, and then remove the trim from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
