Trim - Inner - Seat Post - 2nd Row - LH - Remove And Replace: Install
- Position the LH 2nd row seat post inner trim on the vehicle, and then install the clips (x4) that attach the trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

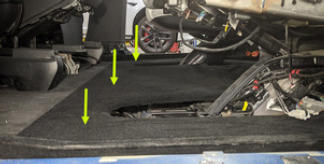

- With assistance, position the 2nd row mid floor board on the vehicle, and then install the clips (x5) that attach the floor board to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace)
.
- Position the RH rear sill panel trim on the vehicle, and then install the clips (x8) that attach the trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace)
.
- Close the LH and RH falcon wing doors.
- Move the LH and RH front seats to original position.
- Raise the LH and RH front windows.
- Close the LH and RH front doors.
