Trim - Backrest - Seat - 2nd Row - LH (6 Seat) - Remove And Replace: Install

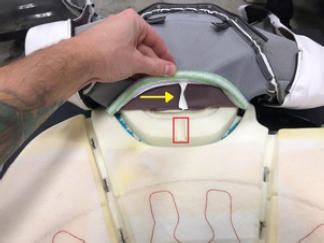

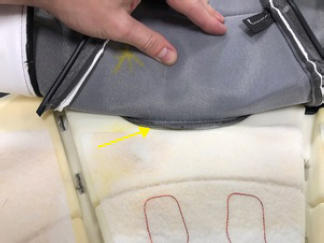

  1. Position the LH 2nd row seat backrest trim upper seat back upholstery on the seat back assembly.
    NOTE: Ensure that the seat back headrest upholstery seam aligns with the center groove on the seat back head rest foam. Firmly press upholstery headrest Velcro to seat back foam to secure.
    G15405098Courtesy of TESLA, INC.
    G15405099Courtesy of TESLA, INC.

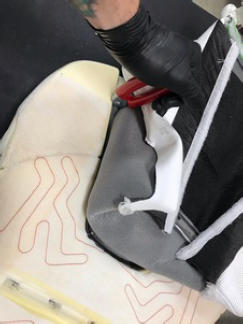

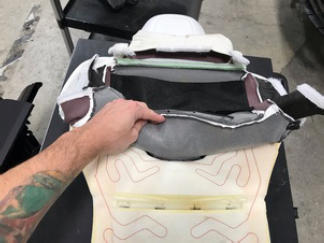

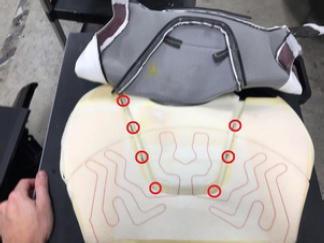

  2. Install the hog rings (x7) that attach the LH 2nd row seat backrest trim to the seat back assembly.
    NOTE: Starting on the LH side of the foam, install the hog rings working downwards and then upwards to the RH side.

    Tip: Use of the following tool(s) is recommended:

    • Hog ring pliers - 1501599-00-A
    G15405100Courtesy of TESLA, INC.
    G15405101Courtesy of TESLA, INC.
    G15405102Courtesy of TESLA, INC.

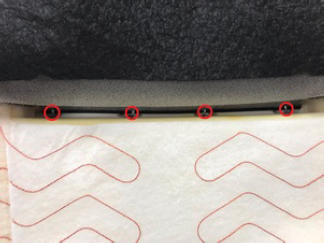

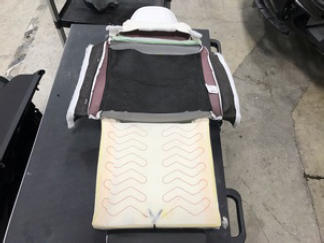

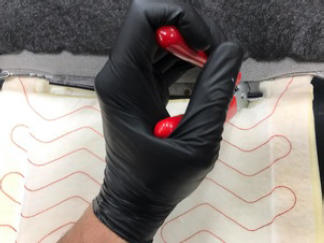

  3. Pull the LH 2nd row seat backrest trim upholstery downwards, and then install the hog rings (x4) that attach the trim to the seat back assembly.

    Tip: Use of the following tool(s) is recommended:

    • Hog ring pliers - 1501599-00-A
    G15405103Courtesy of TESLA, INC.
    G15405104Courtesy of TESLA, INC.
    G15405105Courtesy of TESLA, INC.

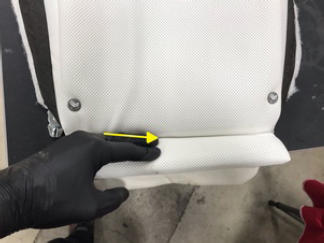

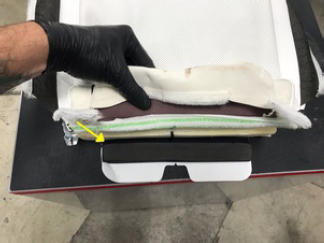

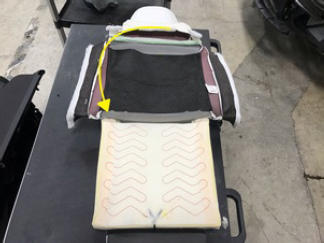

  4. Pull the remaining LH 2nd row seat backrest trim upholstery downwards, and then firmly press the Velcro into the seat back foam.
    NOTE: Thoroughly press the lower seat back Velcro into place until fully secure.
    G15405106Courtesy of TESLA, INC.
    G15405107Courtesy of TESLA, INC.
    G15405108Courtesy of TESLA, INC.
  5. Rotate the seat back assembly to face downwards.
    G15405109Courtesy of TESLA, INC.

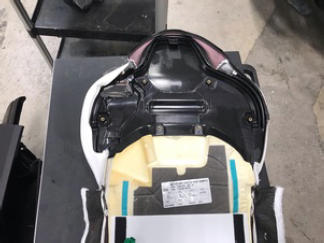

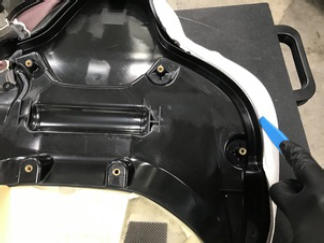

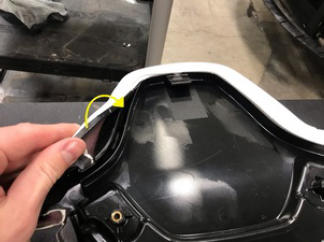

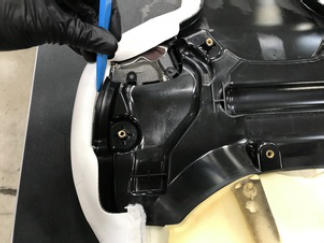

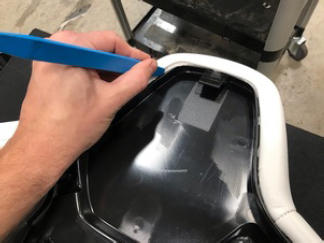

  6. Install the J-clips (x2) that attach the LH 2nd row seat backrest trim upper seat back upholstery to the seat back assembly.
    NOTE: Starting on LH side of upper upholstery, firmly press the J-clips into the seat back assembly to secure. Use a plastic trim tool to ensure J-clips are fully seated.

    Tip: Use of the following tool(s) is recommended:

    • Plastic trim tool
    G15405110Courtesy of TESLA, INC.
    G15405111Courtesy of TESLA, INC.
    G15405112Courtesy of TESLA, INC.
    G15405113Courtesy of TESLA, INC.
    G15405114Courtesy of TESLA, INC.
    G15405115Courtesy of TESLA, INC.

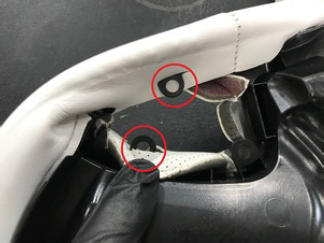

  7. Install the tabs (x2) that attach the LH 2nd row seat backrest trim to the seat back assembly.
    G15405116Courtesy of TESLA, INC.

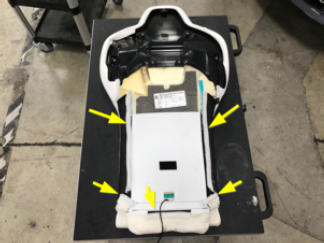

  8. Install the Velcro straps (x5) that attach the LH 2nd row seat backrest trim to the seat back frame.
    NOTE: Firmly pull the Velcro straps to seat back assembly, and then press into place to secure.
    G15405117Courtesy of TESLA, INC.

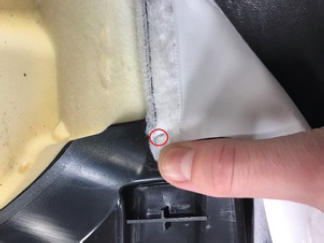

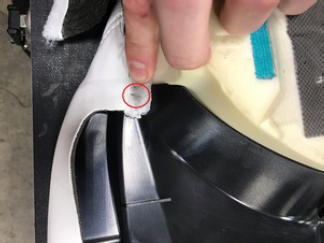

  9. Install the staples (x2) that attach the LH 2nd row seat backrest trim to the seat back assembly.
    NOTE: Secure the Velcro strap to the seat back assembly with the staples.
    G15405118Courtesy of TESLA, INC.
    G15405119Courtesy of TESLA, INC.
    G15405120Courtesy of TESLA, INC.

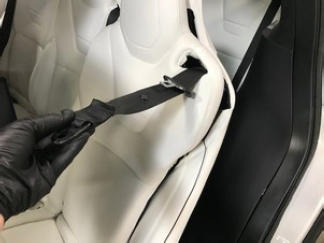

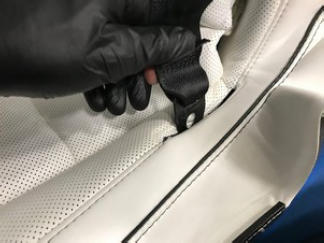

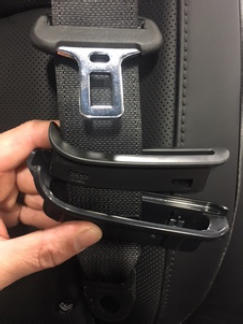

  10. Route the seatbelt through the seat back assembly.
    NOTE: Ensure that the seatbelt anchor escutcheon is routed onto the seatbelt prior to the seatbelt anchor being routed through seat cushion. Do not install seatbelt the anchor escutcheon at this time.
    G15405121Courtesy of TESLA, INC.
    G15405122Courtesy of TESLA, INC.
    G15405123Courtesy of TESLA, INC.
  11. Install the LH 2nd row seatbelt escutcheon. See Escutcheon - Seatbelt - 2nd Row - LH (6 Seat) (Remove and Replace) .
  12. Install the LH 2nd row seat seat back cover. See COVER - SEAT BACK - 2ND ROW SEAT - LH (6 SEAT) (REMOVE AND REPLACE) .
  13. Install the LH 2nd row seatbelt anchor escutcheon. See Escutcheon - Seatbelt Anchor - 2nd Row - LH (6 Seat) (Remove and Replace) .

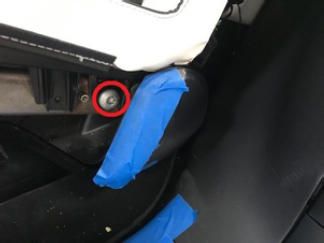

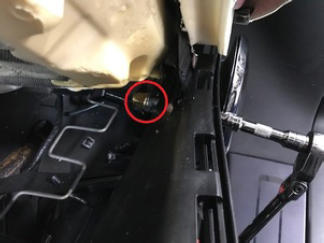

  14. Install the bolt, nyloc nut, and seat frame washer that attaches the seatbelt anchor to the seat frame.

    40 N.m (29.5 ft-lbs)

    NOTE: Install a new nyloc nut.

    Tip: Use of the following tool(s) is recommended:

    • 3 in extension
    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • Socket 3/8 in Dr. 11/16 - 1761805-00-A
    • Torx Plus T45 socket
    G15405124Courtesy of TESLA, INC.
    G15405125Courtesy of TESLA, INC.

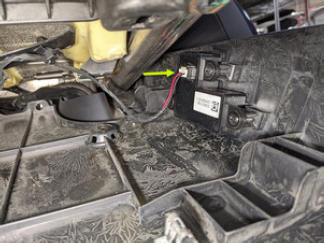

  15. Position the LH monopost under belly trim on the seat assembly, and then connect the trim connector.
    G15405126Courtesy of TESLA, INC.

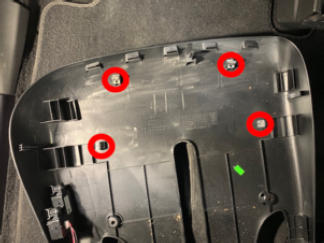

  16. Install the clips (x4) that attach the 2nd row LH monopost under belly trim to the seat.
    NOTE: Align the datums first, and then secure the trim.
    G15405127Courtesy of TESLA, INC.

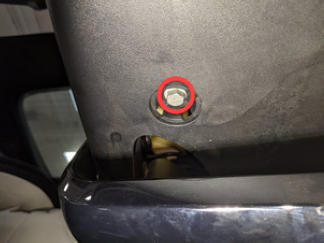

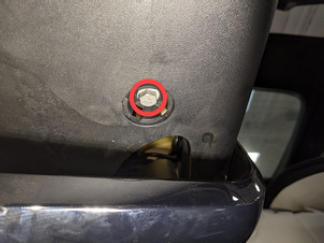

  17. Install the bolts (x2) that attach the 2nd row LH monopost under belly trim to the seat.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15405128Courtesy of TESLA, INC.
    G15405129Courtesy of TESLA, INC.
  18. Install the LH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
  19. Raise the LH and RH front windows.
  20. Close the LH front door.
