Side Shield - Outboard - 2nd Row Seat - RH (5 Seat) - Remove And Replace: Remove
- Open the RH falcon wing door.

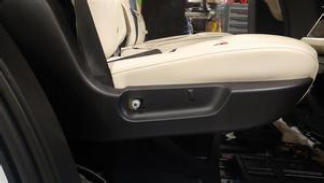

- Remove the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

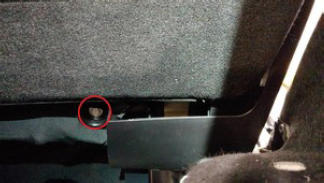

- Release the clip that attaches the RH 2nd row seat outboard side shield to the seat.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool

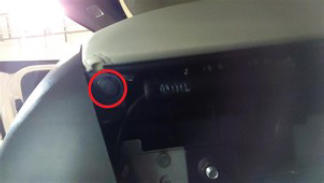

- Remove the bolt that attaches the RH 2nd row seat outboard side shield to the seat.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench

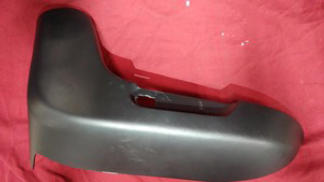

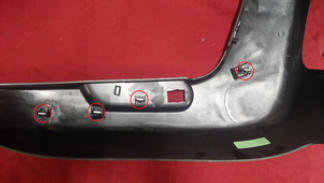

- Lift the RH 2nd row seat outboard side shield upwards to release the clips (x4) that attach the side shield to the seat, and then remove the side shield from the vehicle.
