Side Shield - Outboard - 2nd Row Seat - RH (5 Seat) - Remove And Replace: Install

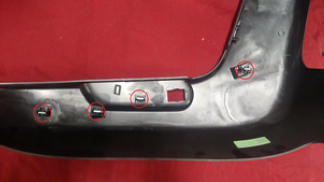

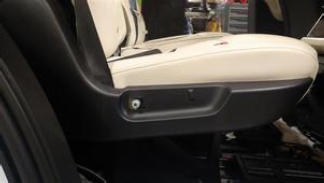

- Starting with the top right corner of the RH 2nd row seat outboard side shield, position the side shield on the vehicle, and then install the clips (x4) that attach the side shield to the seat.

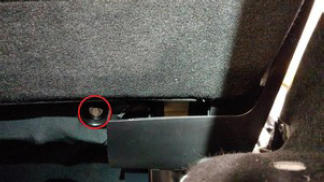

- Install the bolt that attaches the RH 2nd row seat outboard side shield to the seat.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench

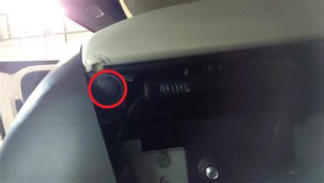

- Install the clip that attaches the RH 2nd row seat outboard side shield to the seat.
- Install the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Close the RH falcon wing door.
