Side Shield - Inboard - 2nd Row Seat - RH (5 Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - RH (5 SEAT) (REMOVE AND REPLACE) .
  2. Release the clip that attaches the RH 2nd row seat belt buckle harness to the side shield.

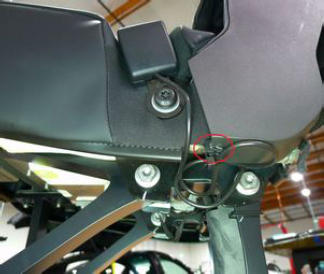

    G15405047Courtesy of TESLA, INC.
  3. Release the clip and tabs (x4) that attach the RH 2nd row seat inboard side shield to the seat assembly, and then remove the side shield from the seat assembly.
    NOTE: Pull the side shield away from the seat assembly to release the clip, and then release the tabs from the bottom up. Lift the side shield to release the top edge from the seat frame.

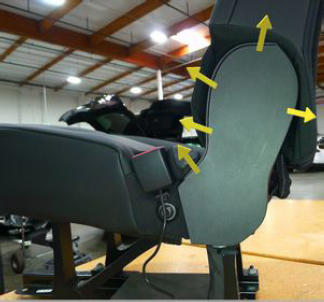

    G15405048Courtesy of TESLA, INC.

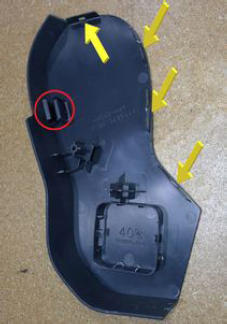

    G15405049Courtesy of TESLA, INC.
