Side Shield - Inboard - 2nd Row Seat - RH (5 Seat) - Remove And Replace: Install

  1. Position the RH 2nd row seat inboard side shield onto the RH 2nd row seat assembly, and then secure the clip and tabs (x4) that attach the side shield to the seat assembly.
    NOTE: Slide the upper tabs down onto the seat frame, and then secure clip and remaining tabs.

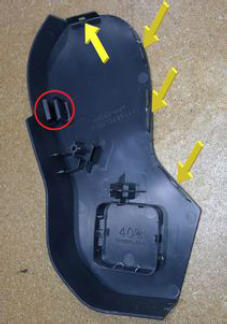

    G15405050Courtesy of TESLA, INC.

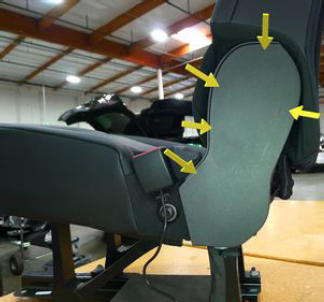

    G15405051Courtesy of TESLA, INC.
  2. Secure the clip that attaches the RH 2nd row seat belt buckle harness to the side shield.

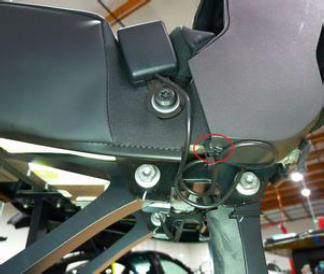

    G15405052Courtesy of TESLA, INC.
  3. Install the RH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - RH (5 SEAT) (REMOVE AND REPLACE) .
