Side Shield - Inboard - 2nd Row Seat - LH (5 Seat) - Remove And Replace: Install

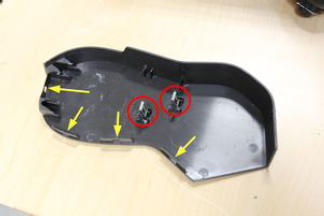

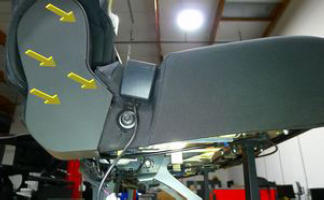

- Slide the upper tabs on the LH 2nd row seat inboard side shield down onto the seat frame, and then secure the clips and tabs that attach the side shield to the seat assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

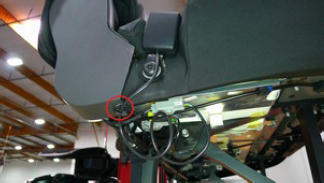

- Secure the clip that attaches the seat belt buckle harness to the LH 2nd row seat inboard side shield
 Courtesy of TESLA, INC.
|
- Fold the LH 2nd row seat back to the down position.
- Install the LH 2nd row seat assembly. See Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove And Replace) .
