Lever - Recliner - 2nd Row - LH - Remove And Replace: Remove
- Open the LH falcon wing door.

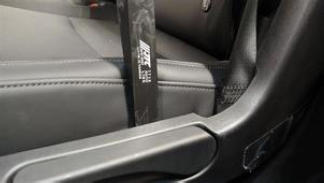

- Carefully insert a wedge between the LH 2nd row seat and the LH 2nd row recliner cover.
 Courtesy of TESLA, INC.
|

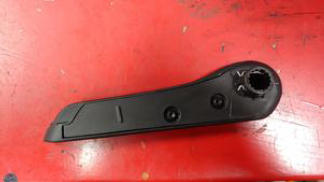

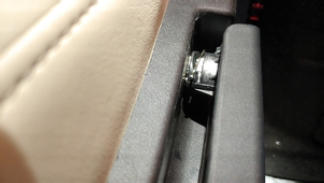

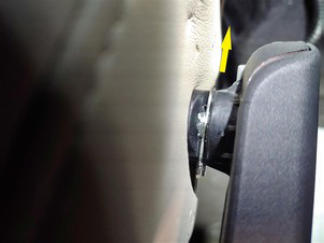

- Release the clip that attaches the LH 2nd row recliner lever to the seat assembly, and then pull the lever away from the seat assembly to release it.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
