Lever - Recliner - 2nd Row - LH - Remove And Replace: Install

  1. Position the LH 2nd row recliner lever onto the seat assembly, and then install the clip that attaches the lever to the seat assembly.

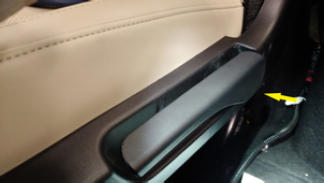

    G15405036Courtesy of TESLA, INC.

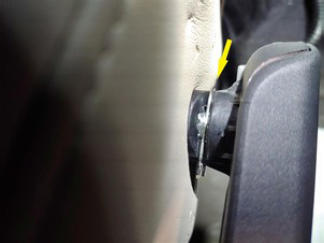

    G15405037Courtesy of TESLA, INC.

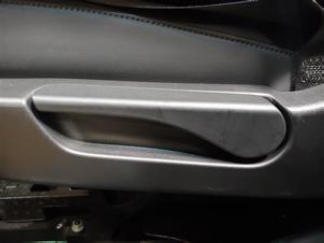

    G15405038Courtesy of TESLA, INC.
  2. Close the LH falcon wing door.
