Cover - Seat Back - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Move the driver seat forward.
- Open the LH falcon wing door.
- Move the LH 2nd row seat forward.

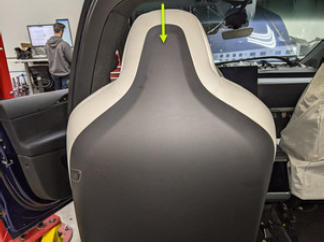

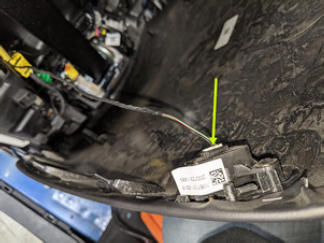

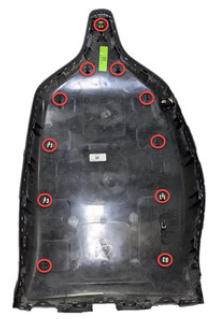

- Release the clips (x11) that attach the LH 2nd row seat seat back cover to the seat assembly, disconnect the electrical connector, and then remove the seat back cover from the seat assembly.CAUTION: Be careful not to damage the switch harness. Do not remove the trim from the seat assembly until the connector has been disconnected.NOTE: Start from the top portion of trim and work downward.

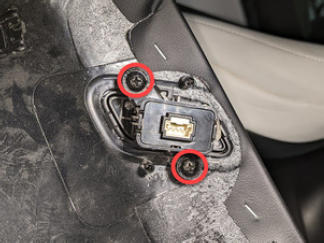

- Remove the screws (x2) that attach the easy entry switch to the LH 2nd row seat seat back cover, and then remove the switch from the cover.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- PH2 screwdriver
