Cover - Seat Back - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Install

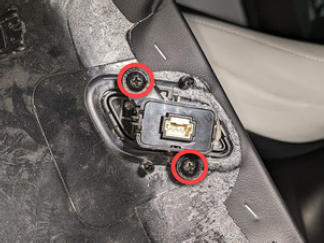

- Position the easy entry switch onto the LH 2nd row seat seat back cover, and then install the screws (x2) that attach the switch to the cover.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- PH2 screwdriver

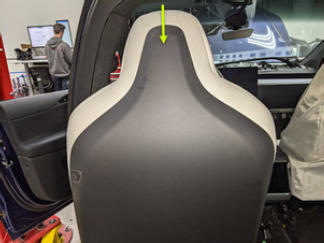

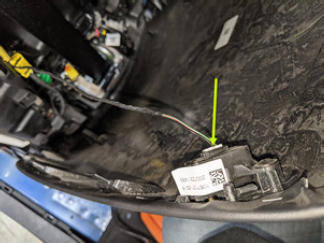

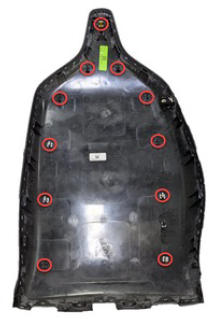

- Position the LH 2nd row seat seat back cover onto the seat assembly, connect the electrical connector, and then secure the clips (x11) that attach the seat back cover to the seat assembly.NOTE: Align the lower datums and side tabs along the seat assembly, and then engage the clips fully.
- Move the LH 2nd row seat to the original position.
- Close the LH falcon door.
- Move driver seat to the original position.
- Raise the LH front window and close the LH front door.
