Cover - Recliner - 2nd Row - LH - Remove And Replace: Remove

  1. Remove the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

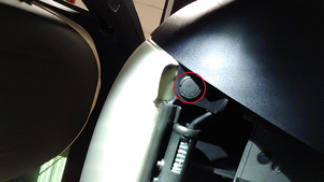

  2. Remove the clip that attaches the LH 2nd row recliner cover to the seat assembly.
    G15405013Courtesy of TESLA, INC.

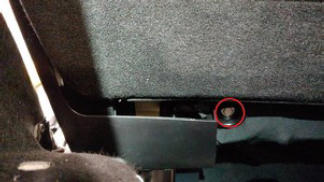

  3. Remove the bolt that attaches the LH 2nd row seat recliner cover to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following is recommended:

    • 10 mm socket
    G15405014Courtesy of TESLA, INC.

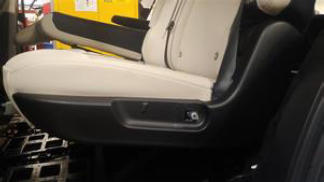

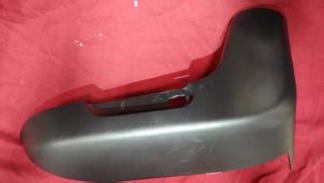

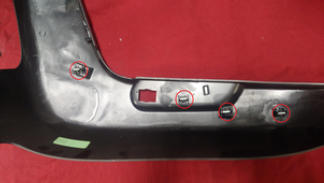

  4. Release the clips (x4) that attach the LH 2nd row recliner cover to the seat assembly, and then lift the cover upward to remove it from the vehicle.
    G15405015Courtesy of TESLA, INC.
    G15405016Courtesy of TESLA, INC.
    G15405017Courtesy of TESLA, INC.
