Cover - Recliner - 2nd Row - LH - Remove And Replace: Install

  1. Position the LH 2nd row recliner cover onto the seat assembly, hook the cover to the top right corner of the seat, and then secure the clips (x4) that attach the cover to the seat assembly.

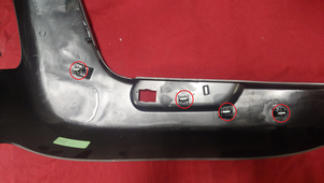

    G15405018Courtesy of TESLA, INC.

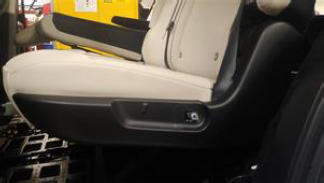

    G15405019Courtesy of TESLA, INC.
  2. Install the bolt that attaches the LH 2nd row seat recliner cover to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following is recommended:

    • 10 mm socket

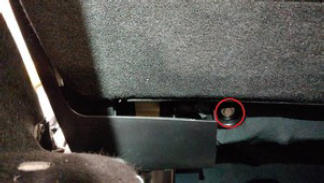

    G15405020Courtesy of TESLA, INC.
  3. Install the clip that attaches the LH 2nd row recliner cover to the seat assembly.

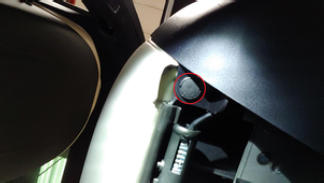

    G15405021Courtesy of TESLA, INC.
  4. Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
