Switch - Back Rest And Cushion Adjust - Driver Seat - Remove And Replace: Remove

  1. Move the driver seat forward.

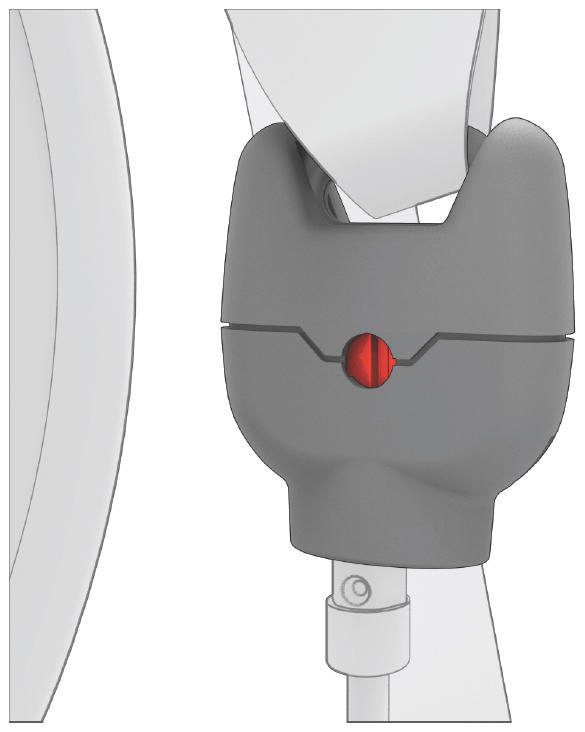

  2. Release the lock that attaches the LH front seat belt to the seat.
    NOTE: Rotate the lock mechanism counter clockwise to release the seat belt.
    G15404558Courtesy of TESLA, INC.
  3. Remove the screw that attaches the driver seat outboard side shield to the seat assembly.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15404559Courtesy of TESLA, INC.
  4. Remove the driver seat cushion adjust button. See BUTTON - CUSHION ADJUST - DRIVER SEAT (REMOVE AND REPLACE) .
  5. Remove the driver seat recliner button. See BUTTON - RECLINER ADJUST - DRIVER SEAT (REMOVE AND REPLACE) .

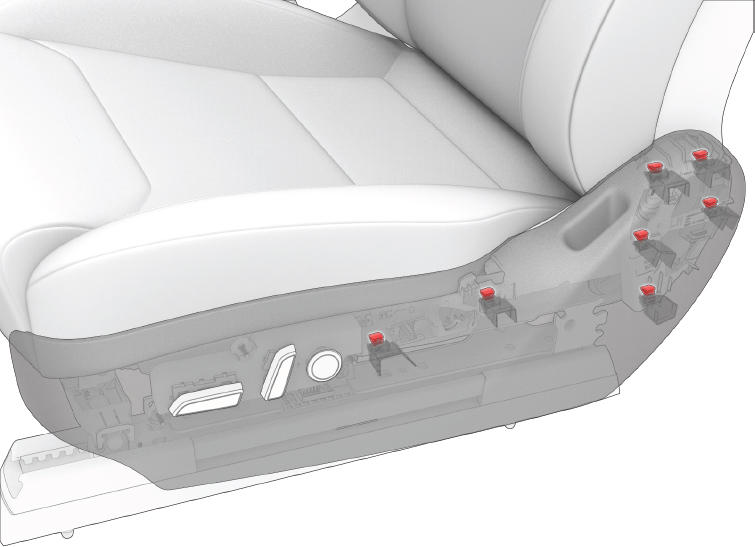

  6. Carefully release the clips (x7) that attach the driver seat outboard side shield to the seat assembly, but do not fully remove the side shield from the seat assembly.
    G15404560Courtesy of TESLA, INC.
  7. Disconnect the electrical harness from the seat switch.
    G15404561Courtesy of TESLA, INC.

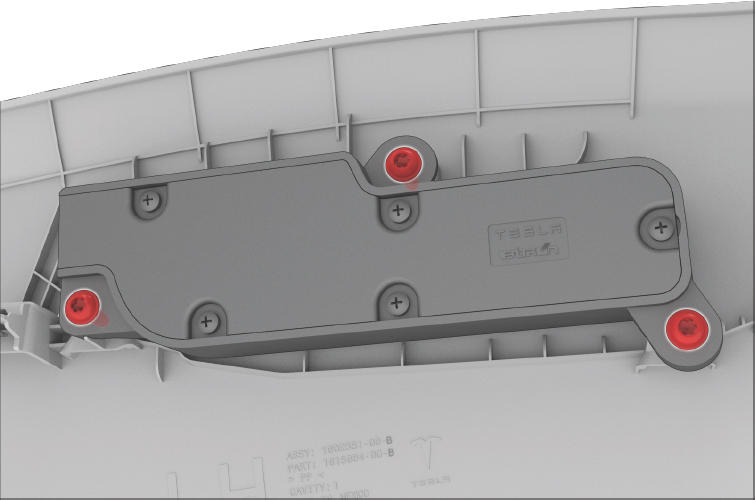

  8. Remove the screws (x3) that attach the back rest and cushion adjust switch to the driver seat outboard side shield, and then remove the switch from the side shield.
    WARNING: Do not remove the Phillips head screws or damage may occur to the seat switch.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15404563Courtesy of TESLA, INC.
