Seat Back Sub-Assembly - 2nd Row Seat - LH (7 Seat) - Remove And Replace: Install

  1. Position the LH 2nd row seat seat back sub-assembly on the seat frame.
    NOTE: Feed the outer and center seat belt through the seat cushion pass through, and then push down on the trim sub-assembly to fit the frame.

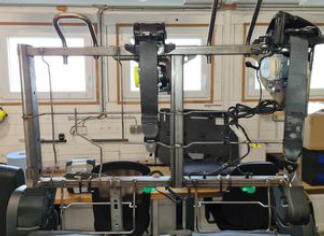

    G15404479Courtesy of TESLA, INC.
    G15404480Courtesy of TESLA, INC.

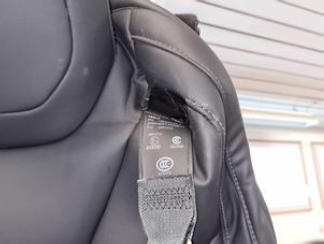

    G15404481Courtesy of TESLA, INC.

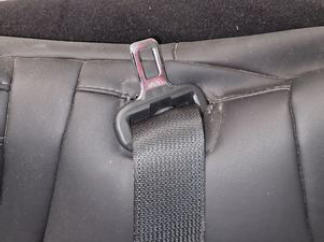

    G15404482Courtesy of TESLA, INC.

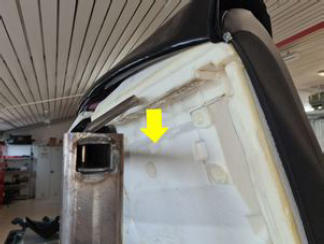

    G15404483Courtesy of TESLA, INC.

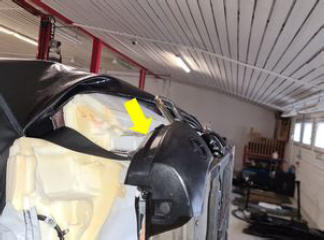

    G15404484Courtesy of TESLA, INC.
  2. Install the center 2nd row seatbelt escutcheon. See Escutcheon - Seatbelt - 2nd Row - Center (Remove and Replace) .
  3. Install the LH 2nd row seatbelt escutcheon. See Escutcheon - Seatbelt - 2nd Row - LH (Remove and Replace) .

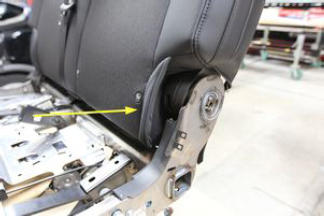

  4. Push the lower portion of the backrest cushion into position.
    G15404485Courtesy of TESLA, INC.

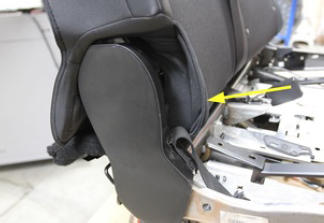

    G15404486Courtesy of TESLA, INC.
  5. Install the lower portion of the LH 2nd row seat back cushion.
    G15404487Courtesy of TESLA, INC.

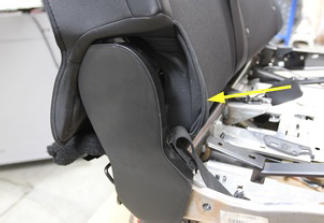

    G15404488Courtesy of TESLA, INC.

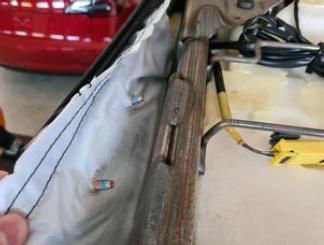

  6. Install new nuts (x2) that attach the LH 2nd row seat side airbag to the seat frame.

    20 N.m (14.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • 13 mm flex head ratcheting combination wrench
    • Ratchet/torque wrench

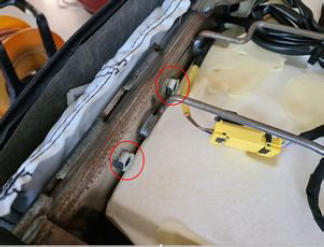

    G15404489Courtesy of TESLA, INC.
    G15404490Courtesy of TESLA, INC.

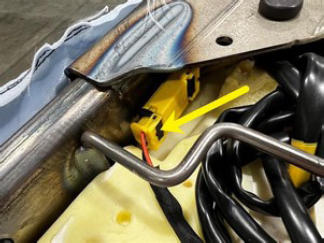

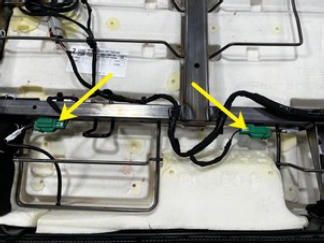

  7. Connect the LH 2nd row seat side airbag connector, and then connect the seat heater connectors (x2).
    G15404491Courtesy of TESLA, INC.
    G15404492Courtesy of TESLA, INC.
  8. Fold the LH 2nd row seat back to the down position.

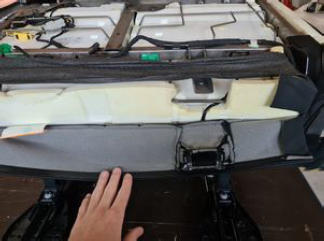

  9. Carefully install the LH 2nd row seat lower rear trim sub-assembly on the seat frame.

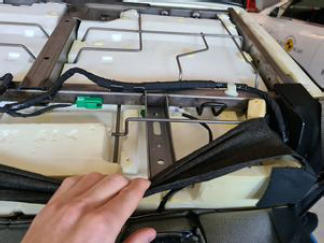

    G15404493Courtesy of TESLA, INC.
    G15404494Courtesy of TESLA, INC.
    G15404495Courtesy of TESLA, INC.
  10. Position the LH 2nd row seat torsion spring bearing cap on the seat, and then install the bolt that attaches the cap to the seat.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench

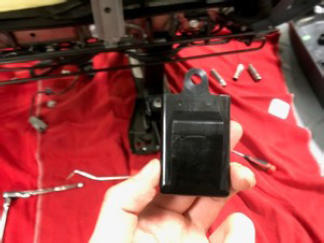

    G15404496Courtesy of TESLA, INC.

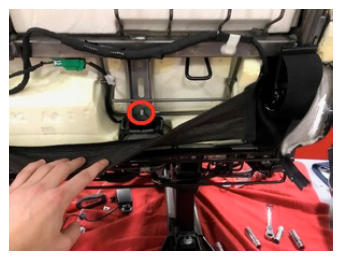

    G15404497Courtesy of TESLA, INC.
  11. Fold the LH 2nd row seat back to the down position.

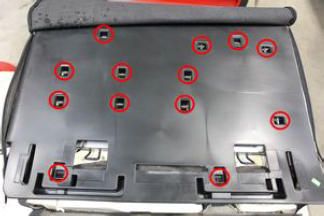

  12. Position the LH 2nd row seat plastic seat back on the seat, and then install the clips (x13) that attach the seat back to the seat.
    G15404498Courtesy of TESLA, INC.
  13. Zip the LH 2nd row seat back upholstery on both sides.
    CAUTION: Use caution to not pull the zippers off the track.
    NOTE: Use a pick to aid in moving the zipper. Tuck the ends of the zippers underneath the upholstery.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in

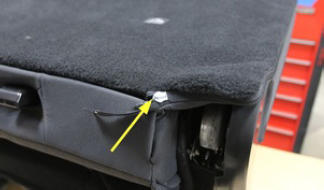

    G15404499Courtesy of TESLA, INC.

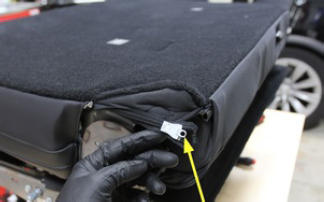

    G15404500Courtesy of TESLA, INC.

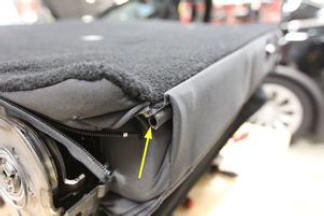

  14. Secure the J-hook that attaches the lower edge of the LH 2nd row seat back upholstery.
    G15404501Courtesy of TESLA, INC.
  15. Move the LH 2nd row seat back to the upright position.

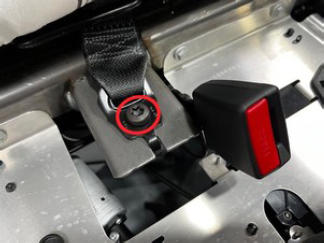

  16. Install a new bolt that attaches the center 2nd row seatbelt to the seat frame.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 3 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T50 socket
    G15404502Courtesy of TESLA, INC.
  17. Install the LH 2nd row seat cushion assembly into the seat assembly.
    CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

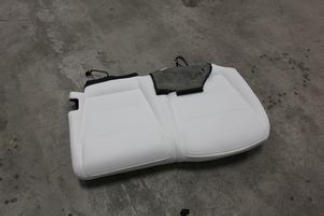

    G15404503Courtesy of TESLA, INC.
  18. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).

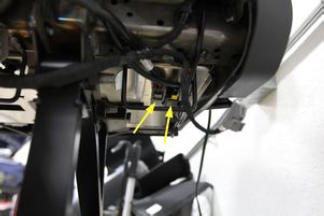

    G15404504Courtesy of TESLA, INC.

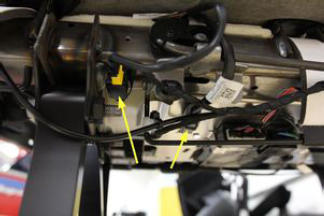

    G15404505Courtesy of TESLA, INC.

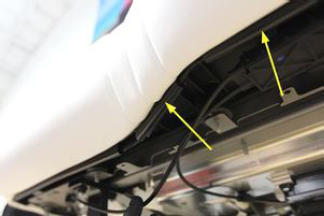

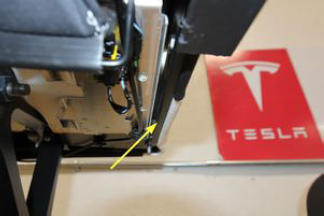

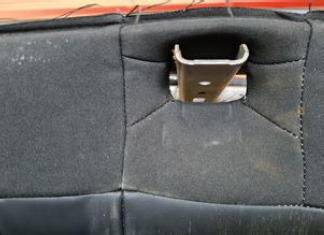

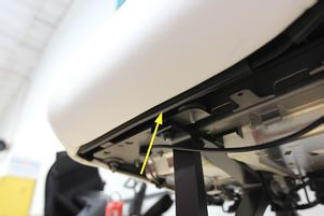

  19. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
    G15404506Courtesy of TESLA, INC.

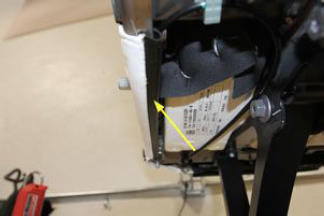

    G15404507Courtesy of TESLA, INC.

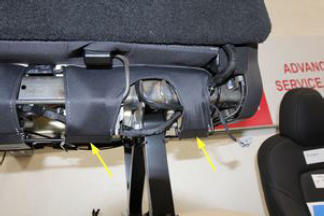

    G15404508Courtesy of TESLA, INC.
    G15404509Courtesy of TESLA, INC.
    G15404510Courtesy of TESLA, INC.

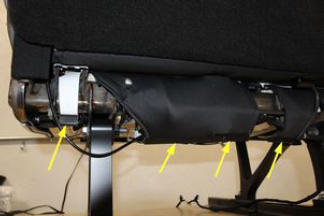

    G15404511Courtesy of TESLA, INC.

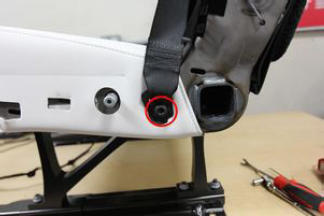

  20. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15404512Courtesy of TESLA, INC.
  21. Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  22. Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  23. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15404513Courtesy of TESLA, INC.
  24. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.

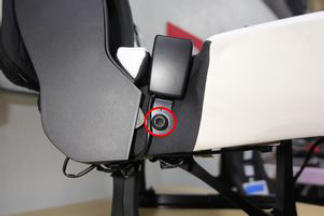

    G15404514Courtesy of TESLA, INC.
  25. Secure the J-hooks (x6) that attach the toe kick to the LH 2nd row seat assembly.
    NOTE: Secure the inner clips (x4) first, and then secure the lower outer clips (x2).
    G15404515Courtesy of TESLA, INC.

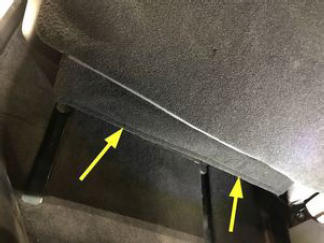

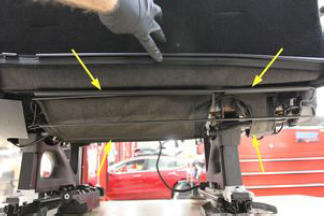

    G15404516Courtesy of TESLA, INC.
  26. Fold the LH 2nd row seat back to the down position.
  27. Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
    NOTE: It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
