Seat Assembly - 2nd Row - RH (7 Seat) - Remove And Replace: Install

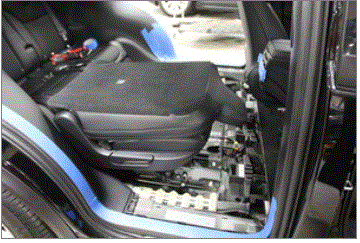

With assistance, position the RH 2nd row seat assembly into the vehicle.
NOTE:
Make sure the guide pins are aligned properly.
Move the seat back to the upright position.
Install and hand tighten new bolts (x6) that attach the front of the RH 2nd row seat track to the vehicle.

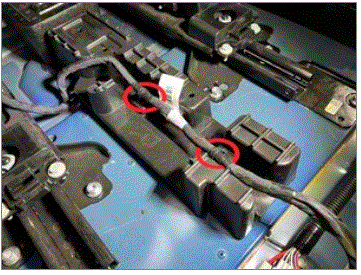

Secure the clips (x2) that attach the RH 2nd row seat harness to the RH floor support bracket.

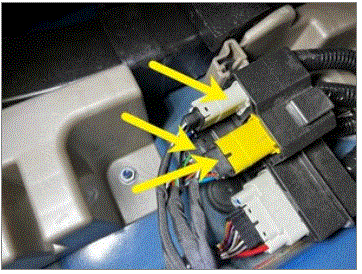

Connect the RH 2nd row seat harness connectors (x3).
NOTE:

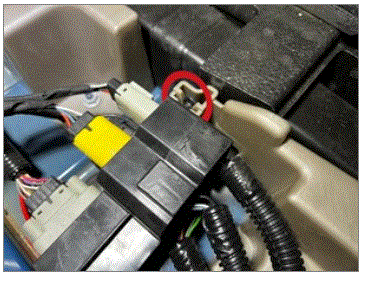

Secure the connector housing bracket if released.
Connect LV power. See LV POWER - DISCONNECT AND CONNECT
Install the rear underhood apron. See UNDERHOOD APRON - REAR - REMOVE AND REPLACE
Move the RH 2nd row seat fully forward.

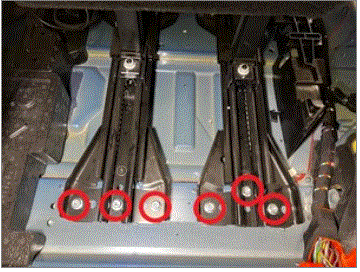

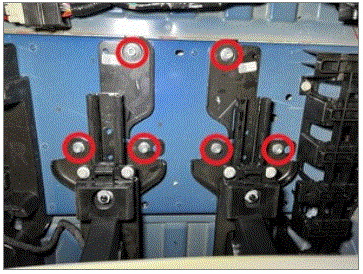

Install new bolts (x6) that attach the rear of the RH 2nd row seat track.
45 Nm (33.2 lbs-ft)

NOTE:
Tighten the center bolt on both sides before tightening the outer bolts.
NOTE:
- 11 mm socket
Install the 2nd row rear floor panel. See FLOOR PANEL - REAR - 2ND ROW (7 SEAT) - REMOVE AND REPLACE
Move the RH 2nd row seat rearward and out of easy entry position.

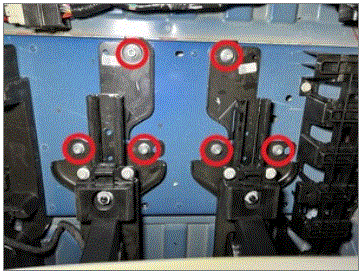

Tighten the bolts (x6) that attach the front of the RH 2nd row seat track to the vehicle.
45 Nm (33.2 lbs-ft)

NOTE:
Tighten the foremost bolt on each side before the outer bolts.
NOTE:
- 11 mm socket

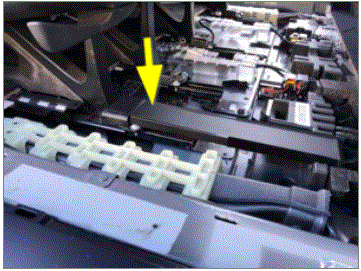

Position the RH outer front plate carpet assembly into the vehicle, and then secure the clip that attaches the plate to the vehicle.
NOTE:
Secure the front plate carpet decal onto the seat track base to cover the fastener.

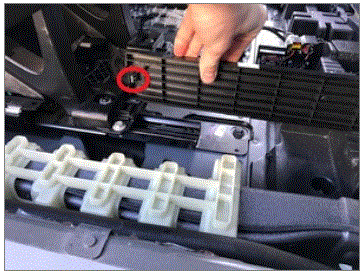

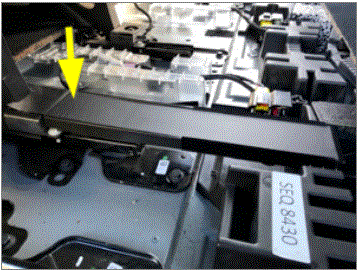

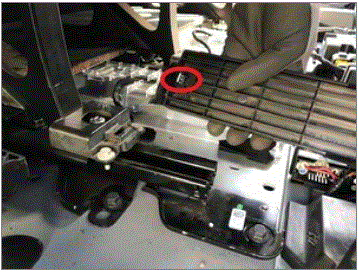

Position the RH inner front plate carpet assembly into the vehicle, and then secure the clip that attaches the plate to the vehicle.
NOTE:
Secure the front plate carpet decal onto the seat track base to cover the fastener.
Move the RH 2nd row seat rearward and out of easy entry position.
Install the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (7 SEAT) - REMOVE AND REPLACE
Move the 2nd row seats fully forward.
Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH - REMOVE AND REPLACE
Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH - REMOVE AND REPLACE
Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH - REMOVE AND REPLACE
Repeat step 18 through step 20 for the RH side of the vehicle.
Install the LH and RH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH - REMOVE AND REPLACE
Close the liftgate.
Move 2nd row seats to the original positions.
Close the RH front door.
Calibrate the rear doors.
NOTE:
If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
Move the driver seat to the original position.
Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
Click the Actions tab, and then search for "Service-Redeploy".
Click SERVICE CAN REDEPLOY , and then click Run and allow the routine to complete.
NOTE:
The routine will state pass but the update will continue to run in the background.

NOTE:
The UI will show the update progress.

NOTE:
Click the X at the top right of window to close once complete.
Disconnect Toolbox and remove the laptop from the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
Raise the front windows and close the LH front door.
