Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT
- In Toolbox, click the Actions tab, and then search for "BCS2L".
- Click PROC_REAR_MONO-SEAT-ENABLE-INSTALL-MODE, click Run
, and allow the routine to complete.NOTE:
Verify the routine you are selecting is specific to "BCS2L", Select 'X' at top right of window to close once complete
- Remove the laptop from the vehicle.NOTE:
Do not close Toolbox as it will be needed to resume later.
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR - REMOVE AND REPLACE
- Remove the LH and RH sill panel trims. See TRIM - SILL PANEL - REAR - LH - REMOVE AND REPLACE
- Remove the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (6 SEAT) - REMOVE AND REPLACE
- Remove the LH and RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH - REMOVE AND REPLACE
- Remove the LH and RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH - REMOVE AND REPLACE
- Remove the 2nd row rear floor panel. See FLOOR PANEL - REAR - 2ND ROW (6 SEAT) - REMOVE AND REPLACE
- Remove the LH 3rd row busbar duct. See DUCT - BUSBAR - 3RD ROW - LH - REMOVE AND REPLACE
- Move the 2nd row LH seat assembly fully backward using the comfort button.
- Remove the LH 2nd row seat post inner and outer trims. See Trim - Inner - Seat Post - 2nd Row - LH - Remove And Replace and Trim - Outer - Seat Post - 2nd Row - LH - Remove And Replace .
- Remove the LH 2nd row seat sliding plate. See PLATE - SLIDING - SEAT - 2ND ROW - LH - REMOVE AND REPLACE
- Remove the LH 2nd row seat sliding carpet. See CARPET - SLIDING - SEAT - 2ND ROW - LH - REMOVE AND REPLACE

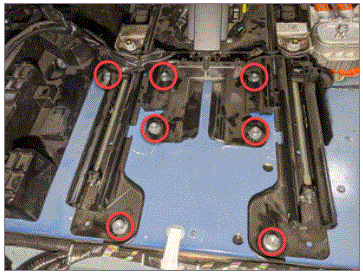

- Remove and discard the bolts (x7) that attach the front of the LH 2nd row seat tracks to the vehicle.
33 Nm (24.3 lbs-ft)
- 11 mm socket
Tip: Use of the following tool(s) is recommended:
- Move the LH 2nd row seat fully forward.

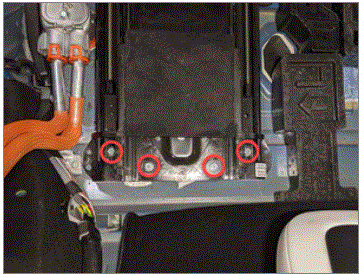

- Remove and discard the bolts (x4) that attach the rear of the LH 2nd row seat tracks to vehicle.
33 Nm (24.3 lbs-ft)
- 11 mm socket
Tip: Use of the following tool(s) is recommended:
- Adjust the LH 2nd row seat for removal.
- Disconnect LV power. See LV POWER - DISCONNECT AND CONNECT .

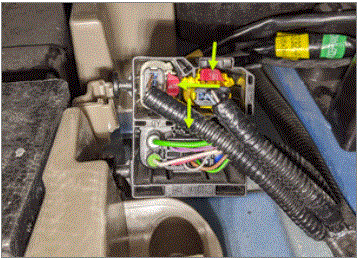

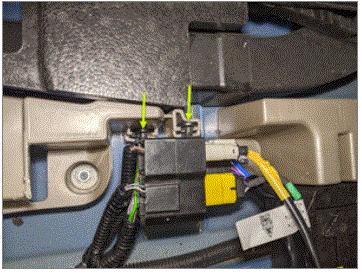

- Release the tabs (x2) that attach the LH 2nd row seat inline harness bracket to the 2nd row front floor bracket, and then release the harness bracket upward from the floor bracket.

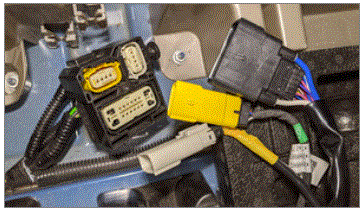

- Release the locking tab, and then disconnect the LH 2nd row seat harness connectors (x3).

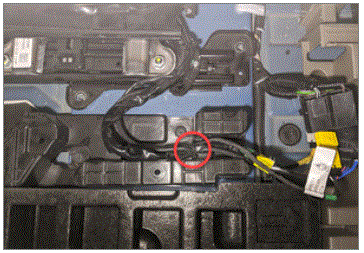

- Release the clip that attaches the LH 2nd row seat harness to the LH side of the mid floor common bracket.

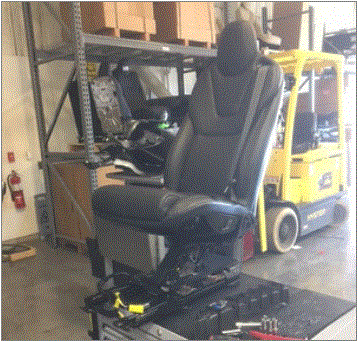

- With assistance, remove the LH 2nd row seat assembly from the vehicle.
