Seat Assembly - 2nd Row - LH (5 Seat) - Remove and Replace: Remove

  1. Open the LH front door and lower the front windows.
  2. Move the driver seat forward.
  3. Fold the LH 2nd row seat to the down position.
  4. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH - REMOVE AND REPLACE

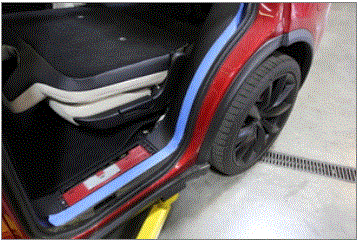

  5. Apply masking tape to the LH racetrack to avoid damage.
    G00655411
  6. Repeat step  2 through step  5 for the RH side of the vehicle.
  7. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR - REMOVE AND REPLACE
  8. Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT - REMOVE AND REPLACE
  9. Remove the trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) - REMOVE AND REPLACE
  10. Remove the RH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH - REMOVE AND REPLACE
  11. Remove the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH - REMOVE AND REPLACE
  12. Remove the RH trunk load floor bracket cover. See COVER - BRACKET - TRUNK LOAD FLOOR - LH - REMOVE AND REPLACE
  13. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH - REMOVE AND REPLACE
  14. Repeat step 10 through step 13 for the LH side of the vehicle.
  15. Remove the 2nd row mid floor panel. See FLOOR PANEL - MID - 2ND ROW (5 SEAT) - REMOVE AND REPLACE

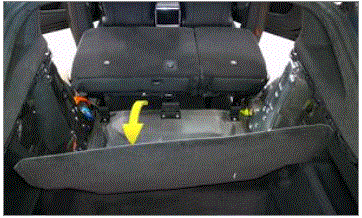

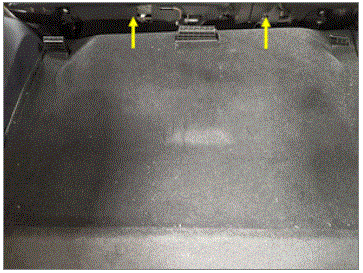

  16. Fold the trunk carpet rearward.
    NOTE:

    Starting from the front, lift the carpet over the harpoon brackets, and then fold the carpet back enough to access the rear seat components.

    G00655412
    G00655413
  17. Remove the 2nd row rear floor panel. See FLOOR PANEL - REAR - 2ND ROW (5 SEAT) - REMOVE AND REPLACE
  18. Remove the LH 2nd row floor supports. See FLOOR SUPPORTS - REAR - 2ND ROW - LH - REMOVE AND REPLACE

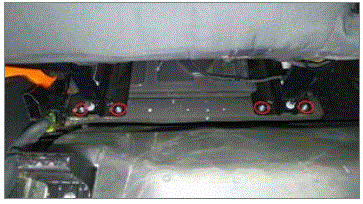

  19. Remove and discard the bolts (x4) that attach the LH 2nd row seat assembly rear brackets to the vehicle.

    45 Nm (33.2 lbs-ft)

      Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G00655414

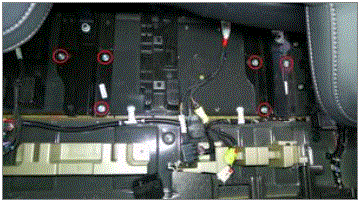

  20. Remove and discard the bolts (x6) that attach the LH 2nd row seat assembly front brackets to the vehicle.

    45 Nm (33.2 lbs-ft)

      Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G00655415
  21. Remove the rear underhood apron. See UNDERHOOD APRON - REAR - REMOVE AND REPLACE
  22. Disconnect LV power. See LV POWER - DISCONNECT AND CONNECT

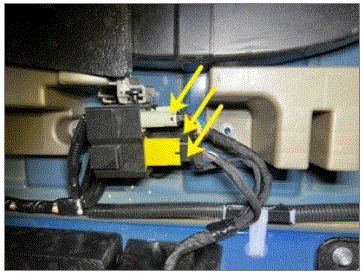

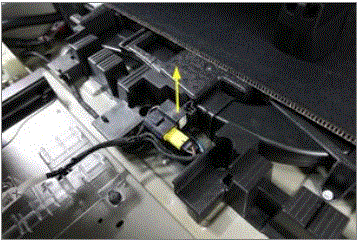

  23. Disconnect the LH 2nd row seat harness electrical connectors (x3).
    NOTE:

    Release the bracket for better access if needed.

    G00655416
    G00655417

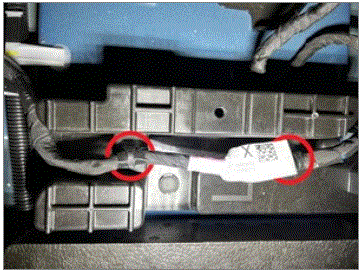

  24. Release the clips (x2) that attach the LH 2nd row seat harness to the floor support bracket.
    G00655418
  25. With assistance, remove the LH 2nd row seat assembly from the vehicle.
