Cable - Recliner - 2nd Row - RH (7 Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - RH (7 SEAT) (REMOVE AND REPLACE) .
  2. Fold the RH 2nd row seat back to the upright position.
  3. Remove the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  4. Remove the RH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

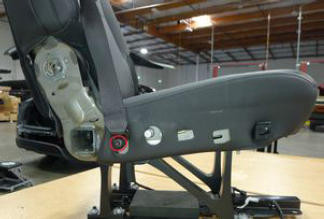

  5. Remove and discard the bolt that attaches the RH 2nd row seatbelt to the seat assembly, and then remove the seatbelt from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15403605Courtesy of TESLA, INC.

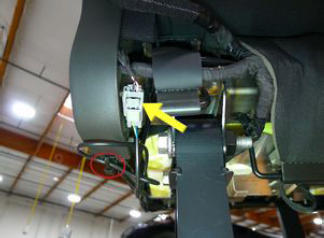

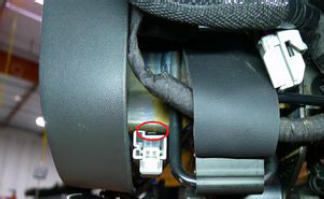

  6. Disconnect the RH 2nd row seatbelt buckle harness connector, and then release the clips (x2) that attach the connector and harness to the seat assembly.
    G15403606Courtesy of TESLA, INC.
    G15403607Courtesy of TESLA, INC.

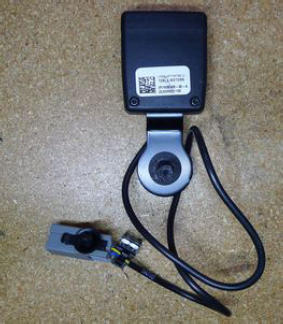

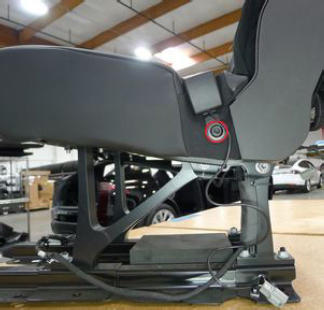

  7. Remove the bolt that attaches the RH 2nd row seatbelt buckle to the seat assembly, and then remove the buckle from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15403608Courtesy of TESLA, INC.
    G15403609Courtesy of TESLA, INC.

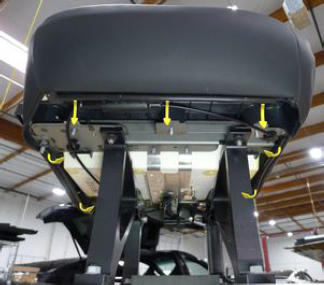

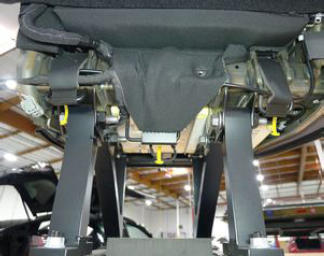

  8. Release the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly, and then release the trim from the bracket.
    G15403610Courtesy of TESLA, INC.
    G15403611Courtesy of TESLA, INC.

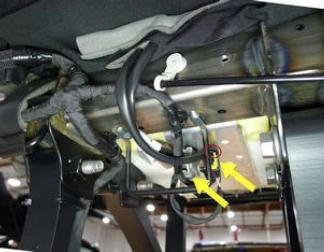

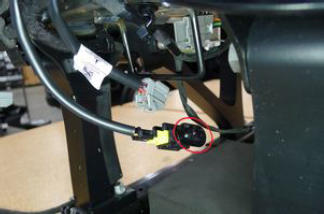

  9. Disconnect the RH 2nd row heater and seat belt reminder electrical connectors, and then release the clip that attaches the harness to the seat assembly.
    G15403612Courtesy of TESLA, INC.
    G15403613Courtesy of TESLA, INC.

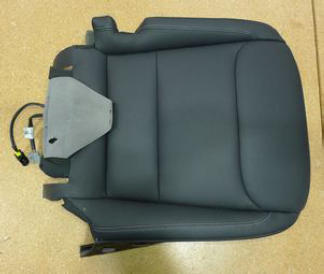

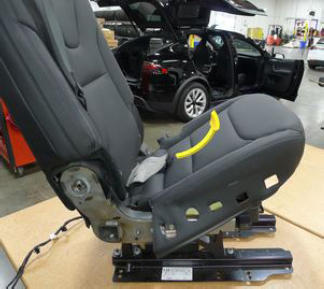

  10. Remove the RH 2nd row seat cushion sub-assembly from the seat assembly.
    NOTE: Guide the harness and tension flaps underneath the seat back.
    G15403614Courtesy of TESLA, INC.
    G15403615Courtesy of TESLA, INC.

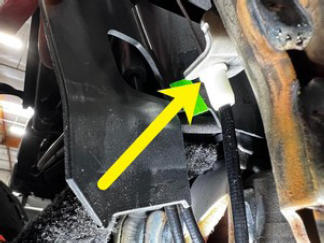

  11. Release the recline release actuator cable from the RH side cable mount.
    G15403616Courtesy of TESLA, INC.

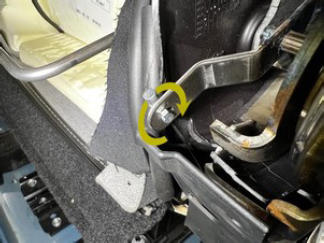

  12. Rotate the RH side hinge lever 90 degrees to align the tab, and then pull the recline release actuator cable away from the hinge lever to release it.
    G15403617Courtesy of TESLA, INC.

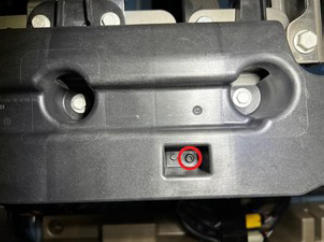

  13. Remove the screw that attaches the splitter box to the RH 2nd row seat assembly.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15403618Courtesy of TESLA, INC.

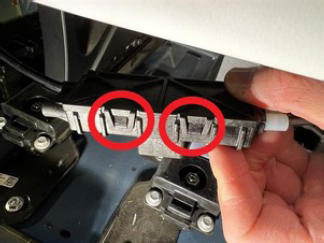

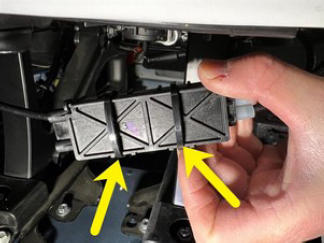

  14. Cut the cable ties, and then release the tabs (x2) to open the splitter box to access the recline release actuator cables.
    G15403619Courtesy of TESLA, INC.
    G15403620Courtesy of TESLA, INC.

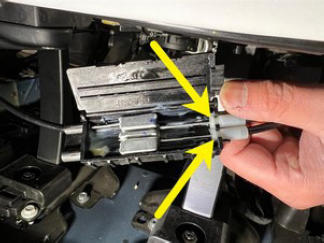

  15. Release the recline release actuator cables (x2) from the splitter box.
    G15403621Courtesy of TESLA, INC.

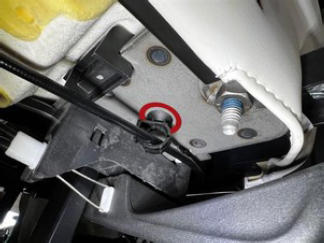

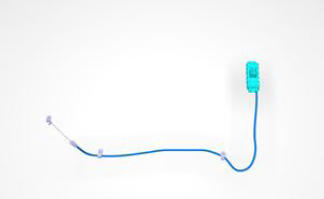

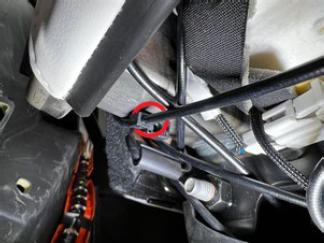

  16. Release the clips (x2) that attach the RH 2nd row recliner cable to the seat assembly, and then remove cable assembly from the seat assembly.
    G15403622Courtesy of TESLA, INC.
    G15403623Courtesy of TESLA, INC.
    G15403624Courtesy of TESLA, INC.
