Cable - Recliner - 2nd Row - RH (5 Seat) - Remove And Replace: Install

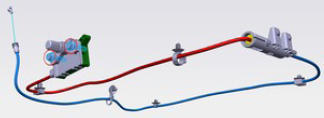

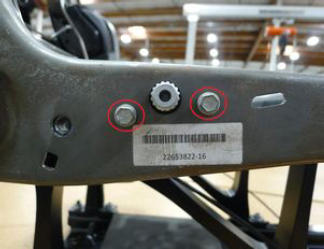

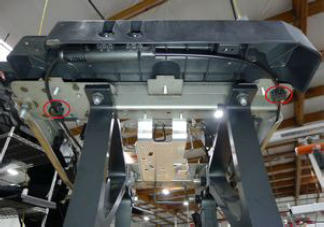

Position the RH 2nd row seat recliner cable spindle assembly into the seat cushion frame, and then install the bolts (x2) that attach the recliner cable to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

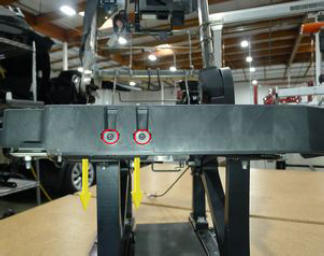

Position the RH 2nd row seat recliner cable compensator housing to the cushion support, and then install the screws (x2) that attach the housing to the cushion support.
1.5 N.m (1.1 ft-lbs)

NOTE: Slide the compensator housing down and out of the cushion support.

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

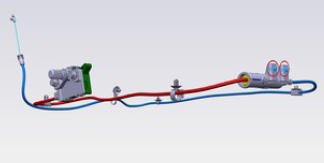

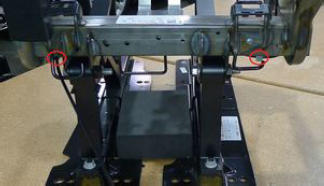

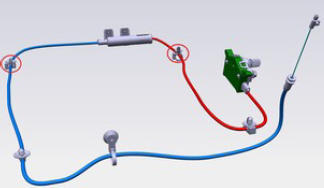

Install the clips (x2) that attach the RH 2nd row recliner cable to the front of the seat cushion frame.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

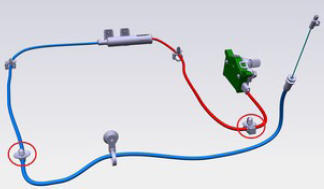

Install the clips (x2) that attach the RH 2nd row recliner cable to the rear of the seat cushion frame.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

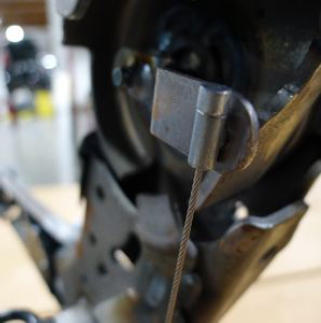

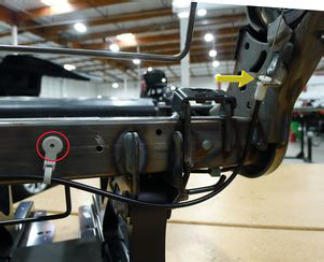

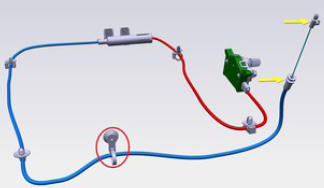

Secure the clip, tab and eyelet that attach the RH 2nd row recliner cable to the recliner assembly and cushion tube.

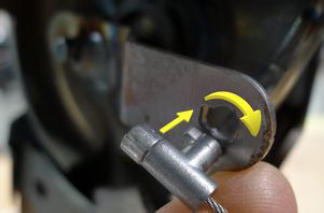

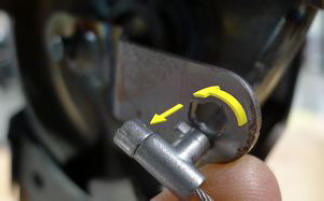

NOTE: Rotate the keyed cable clockwise to install it to the recliner release arm eyelet.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

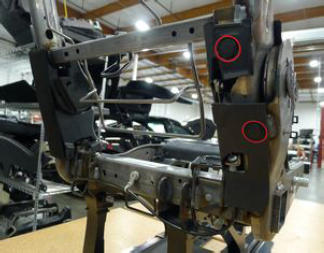

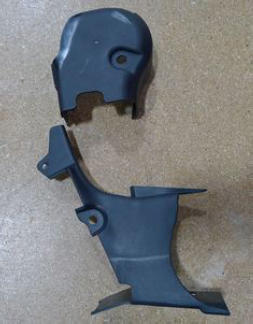

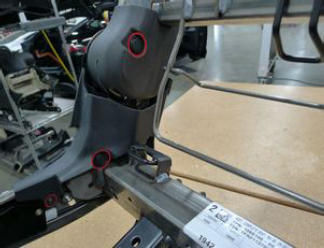

Position the upper and lower inner recliner covers onto the seat assembly, and then install the clips (x4) and screw that attach the covers to the seat assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the RH 2nd row seat seat back sub-assembly. See SEAT BACK SUB-ASSEMBLY - 2ND ROW SEAT - RH (5 SEAT) (REMOVE AND REPLACE) .
