Cable - Recliner - 2nd Row - LH (7 Seat) - Remove And Replace: Remove
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
- Move the LH 2nd row seat backs to the upright position.

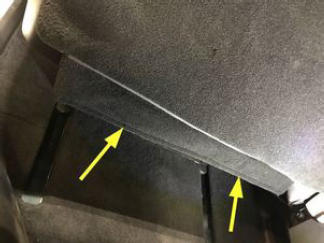

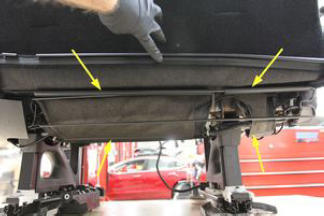

- Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.NOTE: Release lower outer hooks (x2) to expose the inner clips (x4).
- Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.

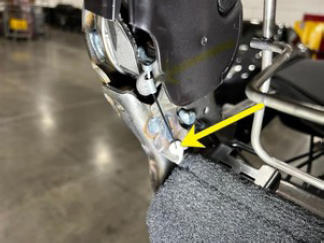

- Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
45 N.m (33.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
- Remove the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Remove the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

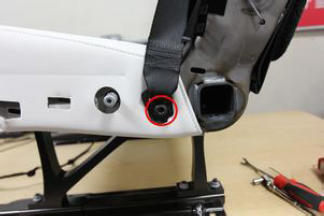

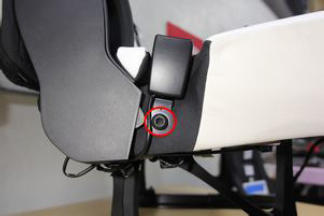

- Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket

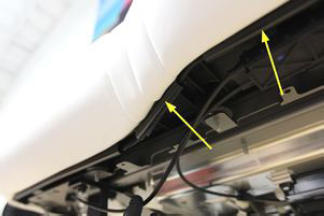

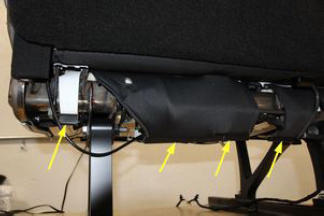

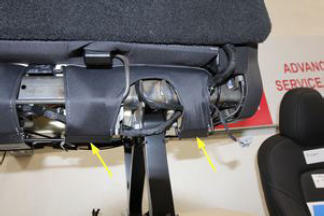

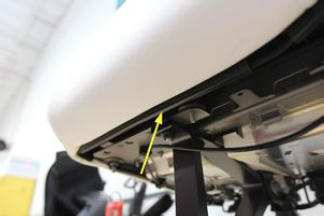

- Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

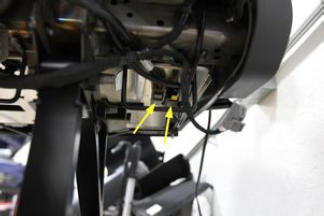

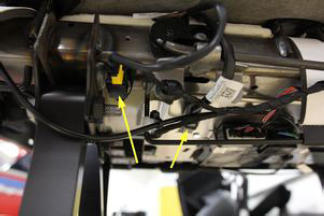

- Disconnect the LH 2nd row seat seat cushion electrical connectors (x4), and then release the clips (x2) that attach the black connectors (x2) to the seat frame

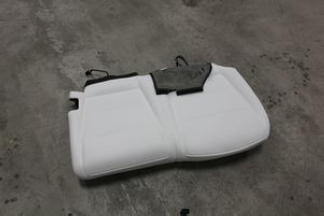

- Remove the LH 2nd row seat cushion assembly from the seat assembly.CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

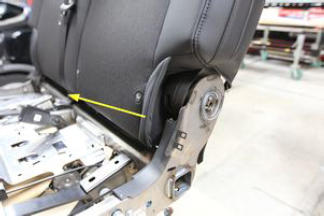

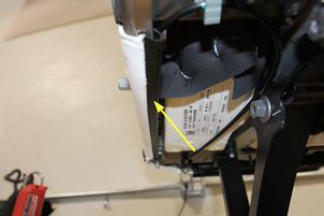

- Release the lower portion of the LH 2nd row seat back cushion.

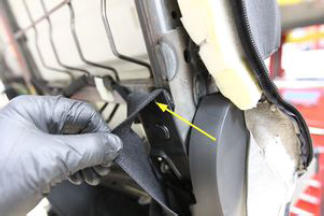

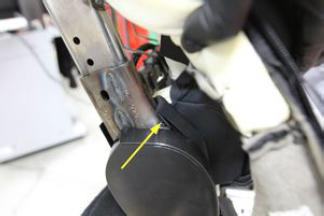

- Remove the elastic bands (x2) at the RH outer hinge cover.

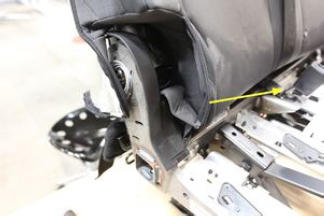

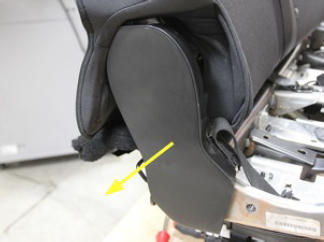

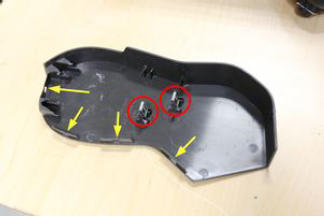

- Release the clips (x2) and tabs (x4) that attach the RH outer hinge cover to the seat assembly, and then remove the cover from the assembly.NOTE: Pull the cover away from seat to release the clips, release tabs from bottom up, and then lift the cover to release the top edge from the seat frame.

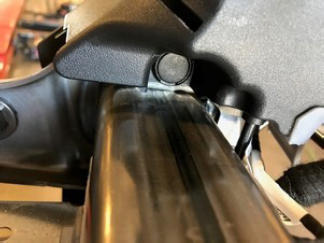

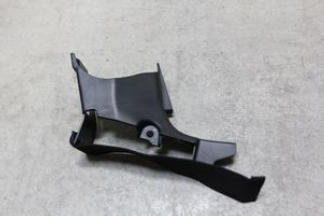

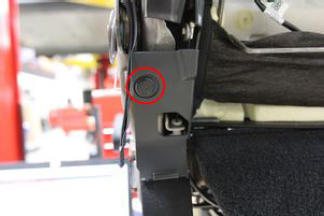

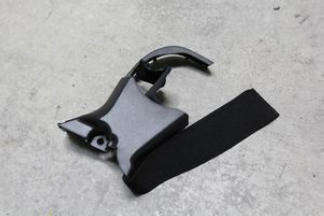

- Remove the push clip that attaches the RH lower inner hinge cover to the seat assembly, and then remove the cover from the seat assembly.

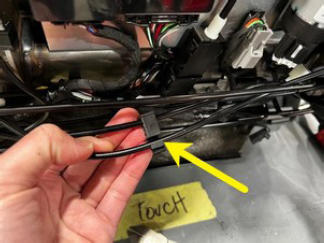

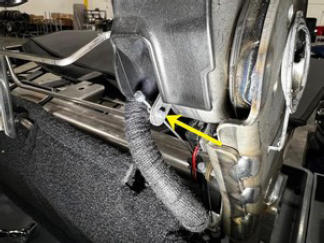

- Release the recline release actuator cable from the lower rear of the seat frame.

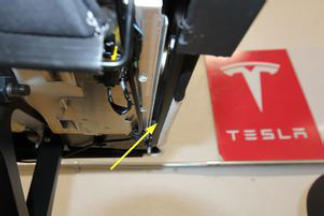

- Remove the recline release actuator cable from the RH side cable mount.

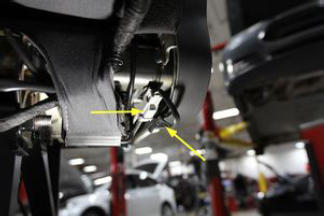

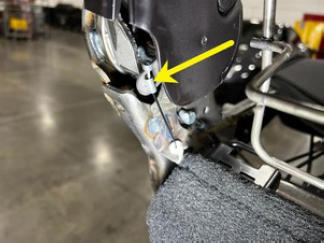

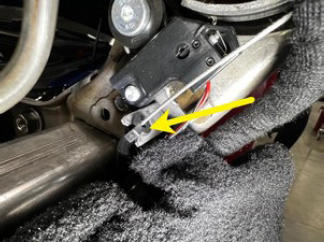

- Remove the recline release actuator cable from the RH side hinge lever.NOTE: Rotate the cable 90 degrees to align the tab, and then pull the cable away from the lever.

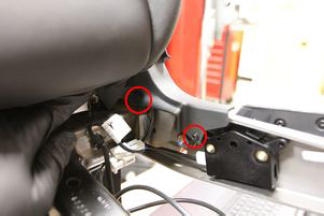

- Remove the screw and clips (x2) that attach the LH lower inner hinge cover to the seat assembly, and then remove the cover from the seat assembly.
Tip: Use of the following tool(s) is recommended:
- T20 socket

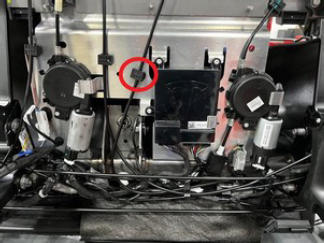

- Release the clip that attaches the LH side cable clip to the seat frame, and then remove the cable clip from the seat frame.
- Remove the recline release actuator cable from the LH side hinge lever.NOTE: Rotate the cable 90 degrees to align the tab, and then pull the cable away from the lever.
- Remove the screw that attaches the actuator to the bracket.
Tip: Use of the following tool(s) is recommended:
- T20 socket

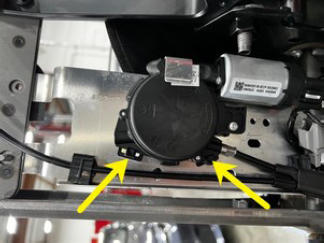

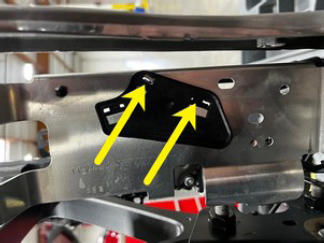

- Release the tabs (x2) that attach the actuator to the bracket, release the actuator from the bracket, and then remove the bracket from the seat assembly.

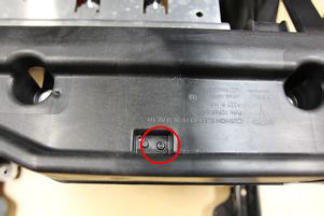

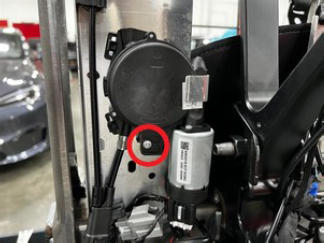

- Remove the screw that attaches the splitter box to the LH 2nd row seat assembly.
Tip: Use of the following tool(s) is recommended:
- T20 socket

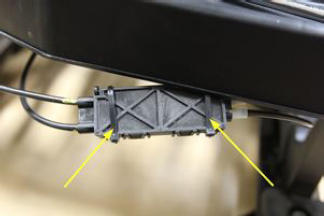

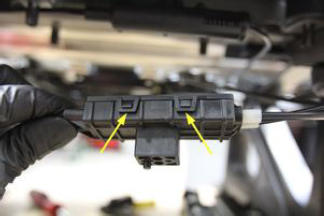

- Cut the cable ties (x2) that secure the splitter box, and then release the tabs (x2) to open the splitter box.

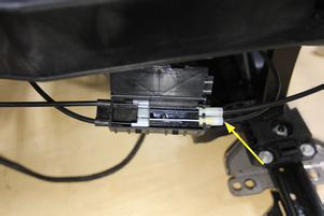

- Disconnect the recline release actuator cable from the splitter box.NOTE: The recline release actuator cable is the silver cable.

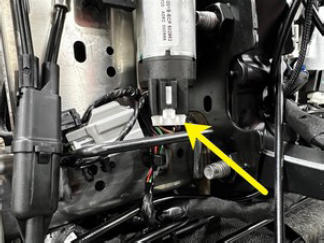

- Disconnect the recline release actuator electrical connector.

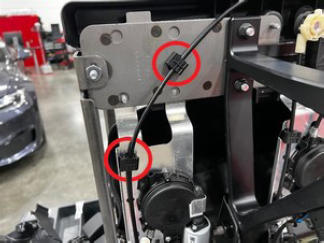

- Release the clips (x3) that attach the LH 2nd row recliner cable to the seat assembly, and then remove the cable from the seat assembly.
