Cable - Recliner - 2nd Row - LH (7 Seat) - Remove And Replace: Install
- Position the LH 2nd row recliner cable to the seat assembly, and then install the clips (x3) that attach the cable to the seat assembly.

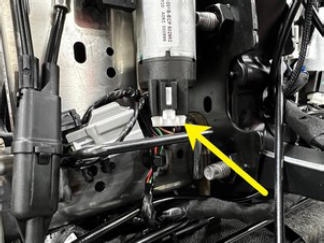

- Connect the recline release actuator electrical connector.

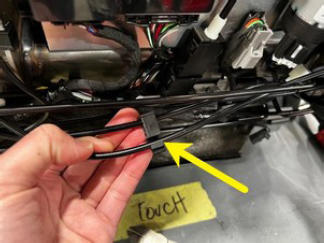

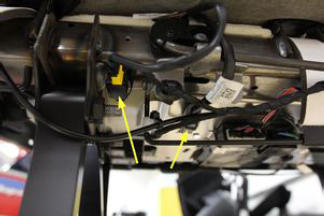

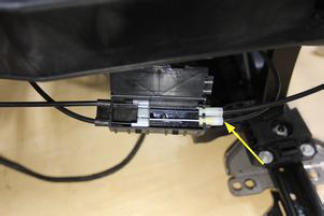

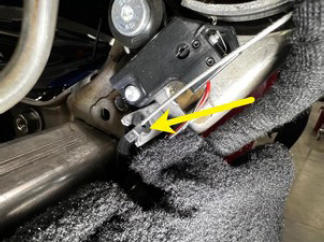

- Connect the recline release actuator cable to the splitter box.NOTE: The recline release actuator cable is the silver cable.

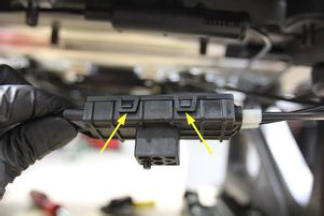

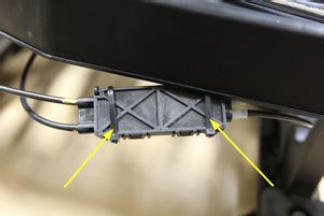

- Secure the tabs (x2) to close the splitter box, and then install cable ties (x2) to secure the splitter box.NOTE: Cut off excess cable tie ends.

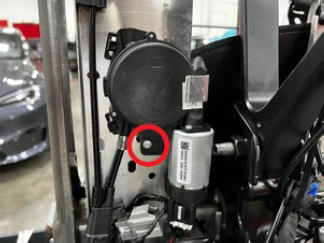

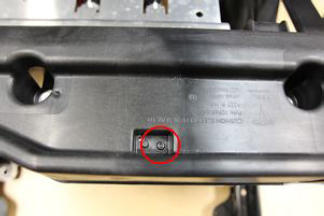

- Install the screw that attaches the splitter box to the LH 2nd row seat assembly.
1.5 N.m (1.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket

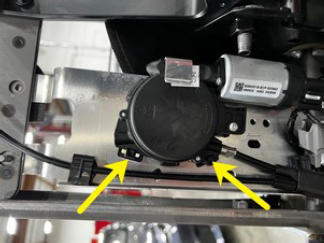

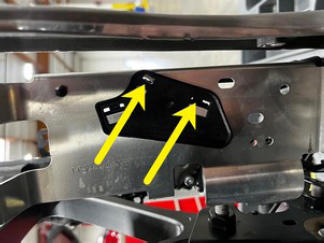

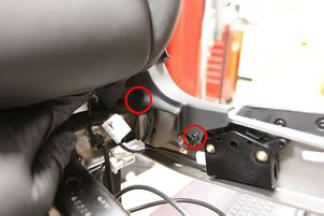

- Position the actuator to the bracket, and then secure the tabs (x2) that attach the bracket to the seat assembly.
- Install the screw that attaches the actuator to the bracket.
Tip: Use of the following tool(s) is recommended:
- T20 socket

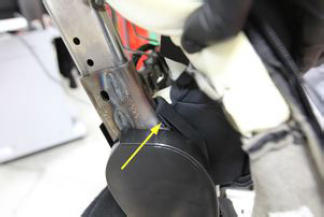

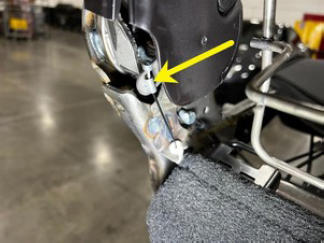

- Secure the recline release actuator cable to the LH side hinge lever.NOTE: Hold the hinge lever down so the hole is visible through the slot, insert the cable end, and then rotate 90 degrees to secure.

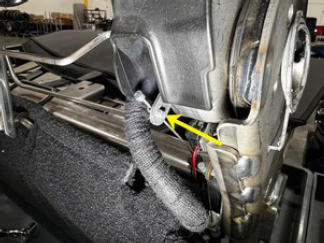

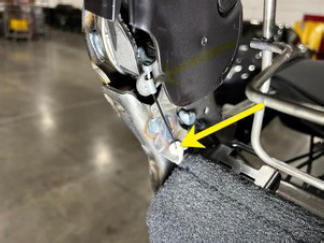

- Secure the clip that attaches the LH side cable clip to the seat frame.

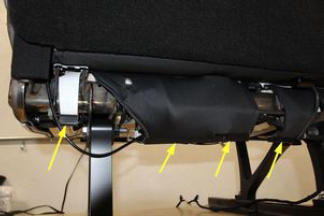

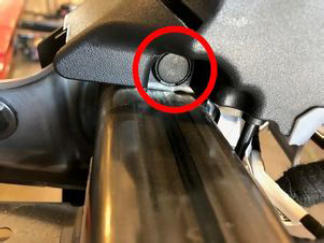

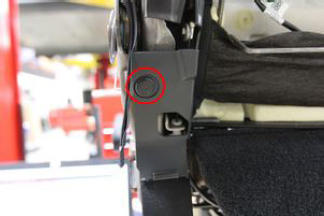

- Position the LH lower inner hinge cover to the seat assembly, and then install the screw and clips (x2) that attach the cover to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- T20 socket

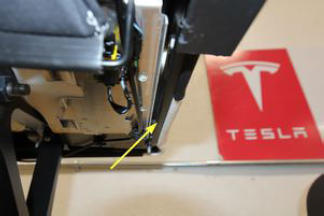

- Secure the recline release actuator cable to the RH side hinge lever.NOTE: Hold the hinge lever down to allow cable to reach the hole, insert the cable end, and then rotate 90 degrees to secure.
- Secure the recline release actuator cable to RH side cable mount.

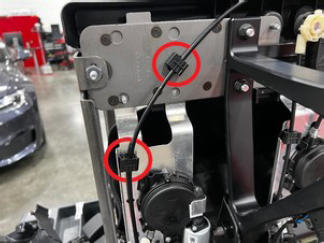

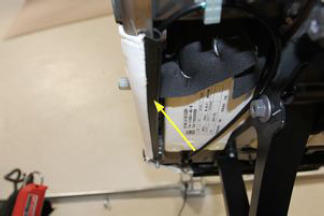

- Secure the recline release actuator cable to the lower rear of the seat frame.
- Position the RH lower inner hinge cover into the seat assembly, and then install the clip that attaches the cover to the seat assembly.

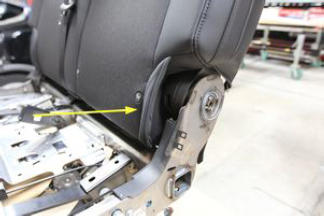

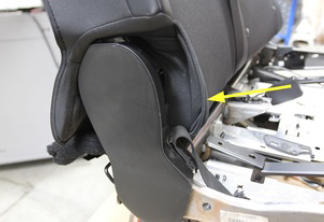

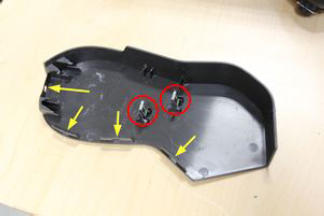

- Position the RH outer hinge cover to the seat assembly, and then secure the clips (x2) and tabs (x4) that attach the cover to the assembly.NOTE: Slide the upper tabs down onto the seat frame, and then secure the clips and tabs.

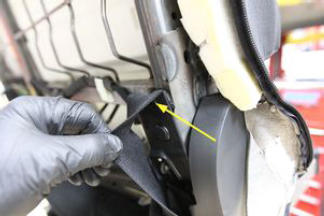

- Secure the elastic bands (x2) at the RH outer hinge cover.

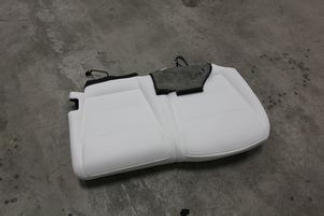

- Install the lower portion of the LH 2nd row seat back cushion.

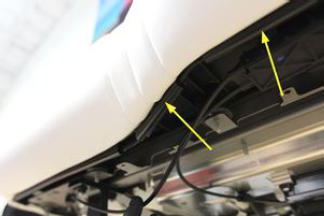

- Install the LH 2nd row seat cushion assembly into the seat assembly.CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

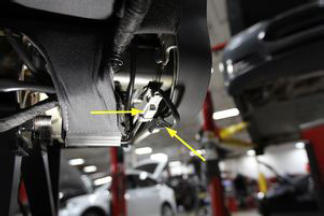

- Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).

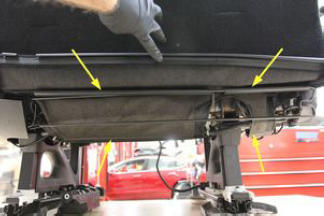

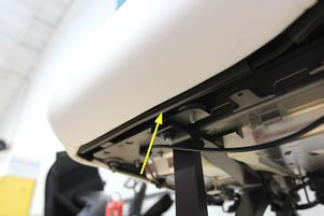

- Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

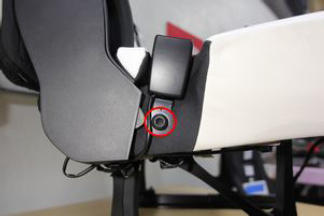

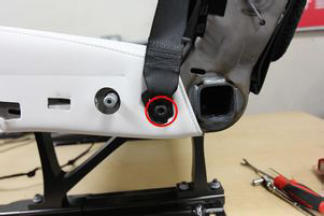

- Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
- Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket

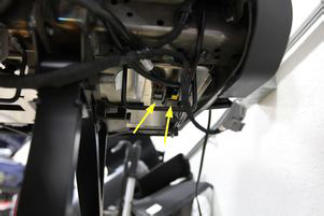

- Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.

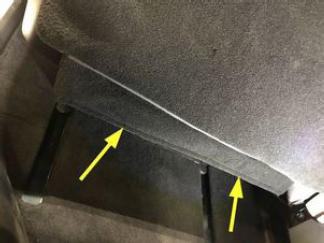

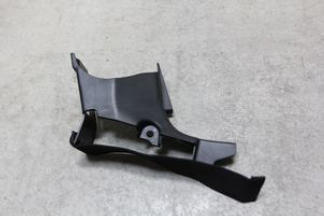

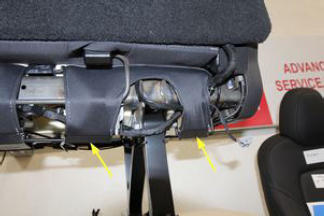

- Secure toe kick to 60 seat assembly.NOTE: 6x J-hooks, Secure inner 4 clips, then lower outer 2.
- Fold LH 2nd row seat to the down position.
- Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .NOTE: It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
