Sensor - Position - Seat Track - 1st Row Seat - LH - Remove And Replace: Install

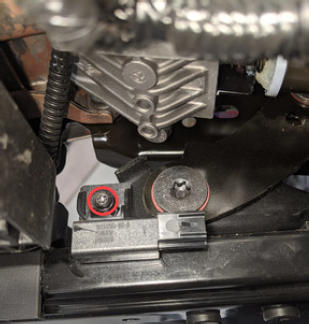

- Secure the LH 1st row seat - seat track position sensor onto the seat track, and then install the screw that attaches the sensor to the seat track.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

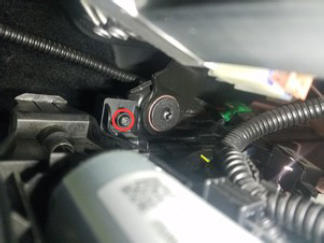

NOTE: The sensor is located on the LH front seat inner track. - Position the LH 1st row seat - seat track position sensor onto the seat track, and then install the screw that attaches the sensor to the seat track.
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

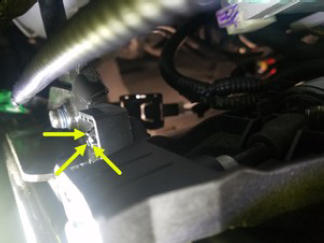

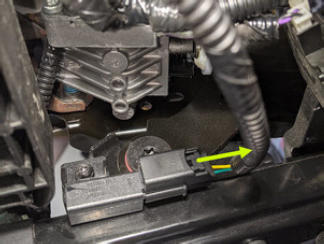

- Connect the LH 1st row seat - seat track position sensor electrical connector.NOTE: The sensor is located on the LH front seat inner track.
- Move the driver seat to the original position.

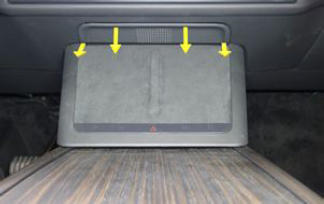

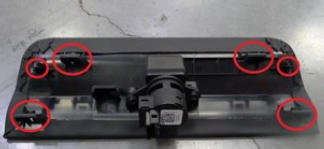

- Release the tabs that attach the instrument panel service panel to the vehicle, and then slide the panel rearward to remove it from the vehicle.
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click Actions/Autodiag , and then search for "Calibration".
- Click PROC_VCSEATD_SEAT-CALIBRATE
, and then click Run
and allow the routine to complete.NOTE: Make sure there are no items on the seat during this routine. Click the "X" at the top right of the window to close once complete.
- Disconnect Toolbox 3 and remove the laptop from vehicle.

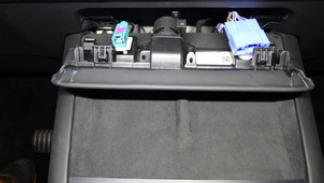

- Position the instrument panel service panel into the vehicle, and then slide the panel upward to install it into the vehicle.
- Raise the LH front window and close the LH front door.
