Motor - Seat Track - Driver Seat - Remove And Replace: Install

  1. Align the holes (x2) on the driver seat track motor with the locating pin on the seat cushion frame, and then fasten the clip that attaches the driver seat track motor onto the frame.
    G15401516Courtesy of TESLA, INC.
    G15401517Courtesy of TESLA, INC.
    G15401518Courtesy of TESLA, INC.
  2. Fasten the clips (x3) that attach the flexible shaft guide tube to the driver seat track motor frame.
    G15401519Courtesy of TESLA, INC.
  3. Install the flexible shaft into the driver seat track motor.
    G15401520Courtesy of TESLA, INC.

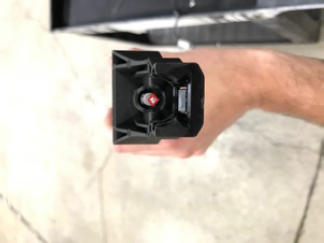

  4. Install the track motor bridge into the inboard seat track.
    NOTE: The track motor cable is keyed square and must be aligned with inboard track. Turn the cable by hand to align as needed. Slide the track motor bridge into the inboard track until it is fully seated.
    G15401521Courtesy of TESLA, INC.
    G15401522Courtesy of TESLA, INC.
    G15401523Courtesy of TESLA, INC.
  5. Install the outboard seat track to the track motor bridge.
    NOTE: The track motor cable is keyed square and must be aligned with outboard track. Turn the cable by hand to align as needed. Slide the outboard track into the track motor bridge until it is fully seated.
    G15401524Courtesy of TESLA, INC.
    G15401525Courtesy of TESLA, INC.
    G15401526Courtesy of TESLA, INC.
  6. Install new outboard bolts (x2) that attach the seat track to the seat cushion frame.

    23 N.m (17.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15401527Courtesy of TESLA, INC.
  7. Connect the driver seat track motor electrical connector.
    G15401528Courtesy of TESLA, INC.
  8. Fasten the clip that attaches the driver seat harness to the track bridge.
    G15401529Courtesy of TESLA, INC.
  9. Connect the driver seat left footwell LED electrical connector.
    G15401530Courtesy of TESLA, INC.
  10. Fasten the clip that attaches the driver seat harness to the RH side seat track.
    G15401531Courtesy of TESLA, INC.
  11. Connect the LH lap pretensioner electrical connector, and then secure the safety lock.
    G15401532Courtesy of TESLA, INC.
    G15401533Courtesy of TESLA, INC.
    G15401534Courtesy of TESLA, INC.
  12. Connect the electrical harness to the back rest and cushion adjust switch assembly, and then verify the functions of the seat switches.
    G15401536Courtesy of TESLA, INC.
  13. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15401535Courtesy of TESLA, INC.
  14. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15401537Courtesy of TESLA, INC.
  15. Secure the seat back elastic straps (x2) onto the seat frame.
    G15401538Courtesy of TESLA, INC.
  16. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  17. Perform a seat calibration. See SEAT - 1ST ROW (CALIBRATION) .
  18. Raise the LH windows and close the LH doors.
