Motor - Seat Height - Driver Seat - Remove And Replace: Remove

Open the LH front door and lower the front windows.
Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .

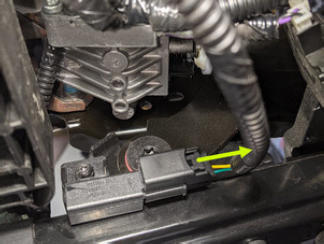

Disconnect the driver seat RH footwell LED electrical connector.

Courtesy of TESLA, INC.

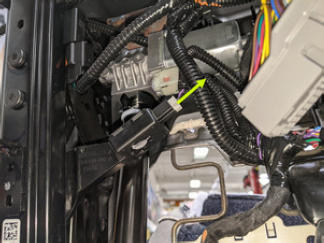

Disconnect the driver seat track position sensor electrical connector.

Courtesy of TESLA, INC.

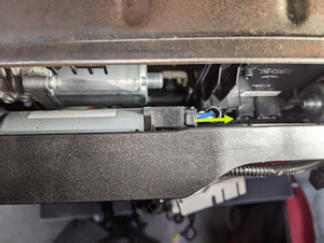

Disconnect the driver seat height adjuster track motor electrical connector.

Courtesy of TESLA, INC.
Disconnect the driver seat - seat track motor electrical connector.

Courtesy of TESLA, INC.

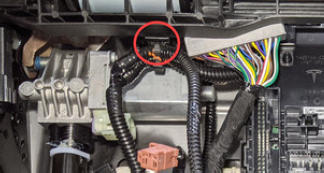

Release the clip that attaches the driver seat harness to the track bridge.

Courtesy of TESLA, INC.

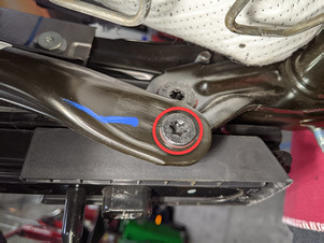

Remove and discard the bolt that attaches the driver seat height adjuster lead screw tube to the RH side rear link.
18 N.m (13.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T40 socket
Courtesy of TESLA, INC.

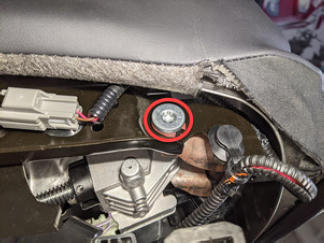

Remove and discard the bolt that attaches the driver seat height motor to the seat assembly, and then remove the motor from the assembly.
23 N.m (17.0 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
