Motor - Seat Height - Driver Seat - Remove And Replace: Install

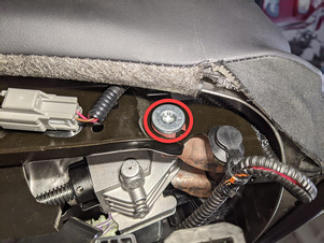

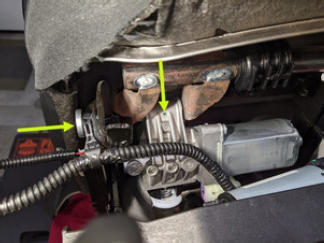

Position the driver seat height motor into the seat assembly, and then install a new bolt that attaches the motor to the assembly.
23 N.m (17.0 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

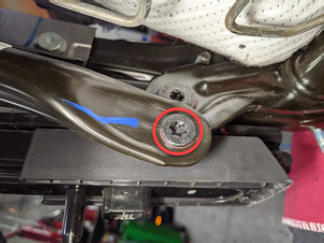

Install a new bolt that attaches the driver seat height adjuster lead screw tube to the RH side rear link.
18 N.m (13.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T40 socket
Courtesy of TESLA, INC.

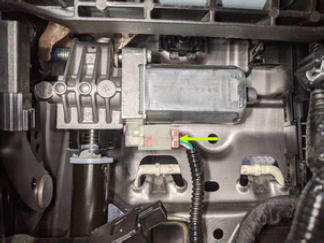

Connect the driver seat height adjuster motor electrical connector.

Courtesy of TESLA, INC.

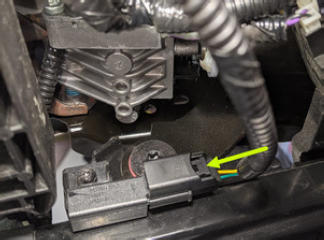

Connect the driver seat track motor electrical connector.

Courtesy of TESLA, INC.

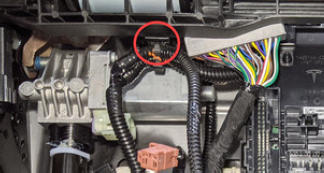

Secure the clip that attaches the driver seat harness to the track bridge.

Courtesy of TESLA, INC.

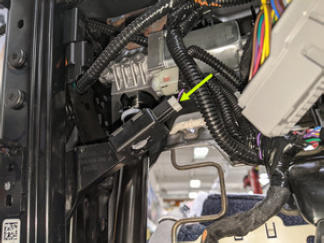

Connect the driver seat track position sensor electrical connector.

Courtesy of TESLA, INC.

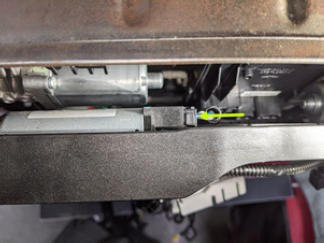

Connect the driver seat right footwell LED electrical connector.

Courtesy of TESLA, INC.
Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
Perform a seat calibration. See SEAT - 1ST ROW (CALIBRATION) .
Raise the front windows and close the LH front door.
