Motor - Recliner - Back Rest - Driver Seat - Remove And Replace: Install

  1. Position the driver seat back rest recliner motor onto the seat assembly, and then install the bolt that attaches the motor to the assembly.

    5 N.m (3.7 ft-lbs)

    NOTE: Hold the motor in place while installing the fastener to avoid damage to the dowel.

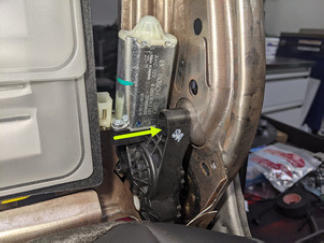

    G15401457Courtesy of TESLA, INC.

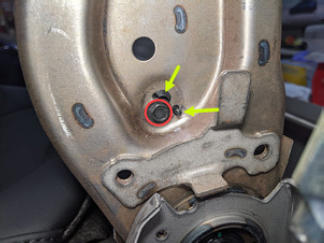

    G15401458Courtesy of TESLA, INC.
  2. Install the driver seat recliner tube. See RECLINER TUBE - DRIVER SEAT (REMOVE AND REPLACE) .
  3. Perform a seat calibration. See SEAT - 1ST ROW (CALIBRATION) .
