Cover - RH - Riser - Front Seat - Remove And Replace: Install

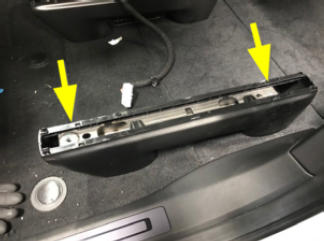

  1. Position the front seat riser RH cover onto the riser, and then secure the clips (x9) that attach the cover to the riser.
    G15401392Courtesy of TESLA, INC.
    G15401393Courtesy of TESLA, INC.
  2. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
