Cover - Outer - Podium - Driver - Remove And Replace: Install

  1. Position the driver podium outer cover onto the seat assembly, and then secure the clips (x2) that attach the cover to the vehicle.
    NOTE: Route the seat harness through the inner outboard cover.

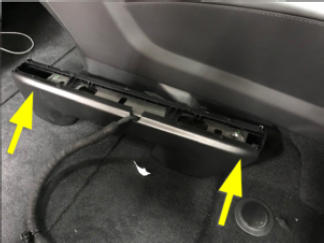

    G15401387Courtesy of TESLA, INC.

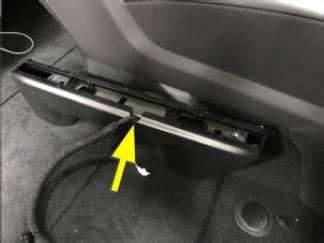

    G15401388Courtesy of TESLA, INC.
  2. Install the driver seat. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  3. Raise the front windows and close the LH front door.
