Cover - Front - Seat Track - 1st Row Seat - Remove And Replace: Remove
- Move the driver seat forward.

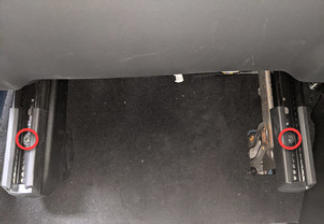

- Remove and discard the bolts (x2) that attach the rear of driver seat tracks to the floor panel.
34 N.m (25.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T45P socket
- Move the driver seat backward.
- Remove and discard the bolts (x2) that attach the front of the driver seat tracks to the floor panel.
Tip: Use of the following tool(s) is recommended:
- T45P socket

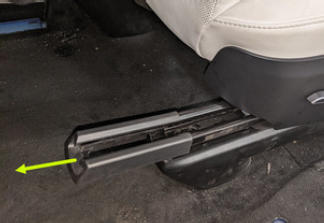

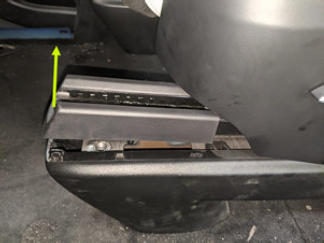

- Slightly lift the front portion of the 1st row seat - seat track front cover to release it from the seat track, and then slide the track forward to remove it from the seat track.
