Cover - Front - Seat Track - 1st Row Seat - Remove And Replace: Install

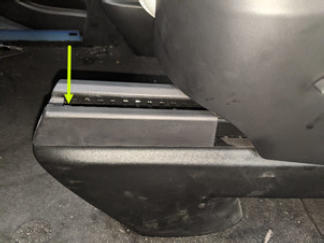

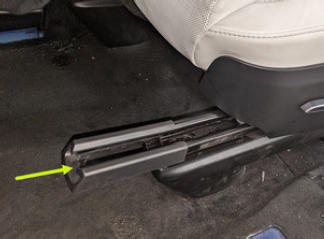

- With the front portion of the 1st row seat - seat track front cover slightly lifted, slide the cover onto the seat track, and then press downward to ensure it is seated onto the seat track.

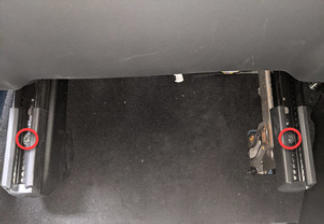

- Install new bolts (x2) that attach the front of the driver seat tracks to the floor panel.
34 N.m (25.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T45P socket
- Move the driver seat forward.

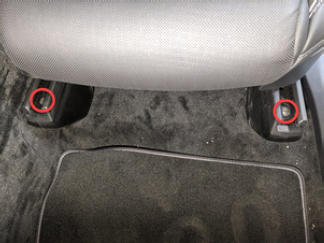

- Install new bolts (x2) that attach the rear of driver seat tracks to the floor panel.
Tip: Use of the following tool(s) is recommended:
- T45P socket
- Move the driver seat to the original position.
