Remove And Replace

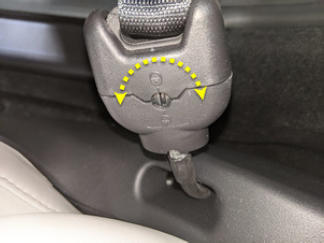

  1. Release RH front seat belt
    NOTE: Turn release mechanism counter clockwise, turn back clockwise after releasing
    G15403407Courtesy of TESLA, INC.
  2. Open RH falcon wing door
    G15403408Courtesy of TESLA, INC.
  3. Remove bolts securing rear of RH front seat tracks to the floor panel
    NOTE: 2x patch bolts, T45P, 34 N.m, Discard after removal
    G15403409Courtesy of TESLA, INC.
  4. Remove bolts securing front of RH front seat tracks to the floor panel
    NOTE: 2x patch bolts, T45P, 34 N.m, Discard after removal
    G15403410Courtesy of TESLA, INC.
  5. Adjust position of RH front seat for easy removal
    NOTE: Move seat to middle of track at most upright position with seat fully up off floor
    G15403411Courtesy of TESLA, INC.
  6. Open hood
    NOTE: Via center display > Controls > Frunk Open
  7. Remove rear underhood apron
    NOTE: 11x clips, 2x datums
    G15403412Courtesy of TESLA, INC.
    G15403413Courtesy of TESLA, INC.
  8. Power off vehicle via center display
    NOTE: Controls > Safety & Security > Power Off
  9. Disconnect LV battery connector and First Responder Loop
    NOTE: 2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL
    G15403414Courtesy of TESLA, INC.
    G15403415Courtesy of TESLA, INC.
    G15403416Courtesy of TESLA, INC.
  10. Position chair to gain access below seat bottom and disconnect RH side body harness from seat controller
    NOTE: 2x connectors, 1x clip, Release red locking tab on black connector
    G15403417Courtesy of TESLA, INC.
  11. Remove RH front seat from vehicle
    NOTE: Recommend assistance, Use caution to not damage other components
    G15403418Courtesy of TESLA, INC.
  12. Install RH front seat into vehicle
    NOTE: Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle
    G15403419Courtesy of TESLA, INC.
  13. Position chair to gain access below seat bottom and connect RH side body harness to seat controller
    NOTE: 2x connectors, 1x clip, Engage red locking tab on black connector, Recommend assistance
    G15403420Courtesy of TESLA, INC.
  14. Position RH front seat upright for bolt installation
    NOTE: Recommend assistance
    G15403421Courtesy of TESLA, INC.
  15. Connect First Responder Loop and LV battery connector
    NOTE: 2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
    G15403422Courtesy of TESLA, INC.
    G15403423Courtesy of TESLA, INC.
  16. Install rear underhood apron
    NOTE: 11x clips, 2x datums
    G15403424Courtesy of TESLA, INC.
    G15403425Courtesy of TESLA, INC.
  17. Secure RH front seat belt
    G15403426Courtesy of TESLA, INC.
  18. Install bolts securing RH front seat rear tracks to vehicle
    NOTE: 2x patch bolts, T45P, 34 N.m, Install new bolts
    G15403427Courtesy of TESLA, INC.

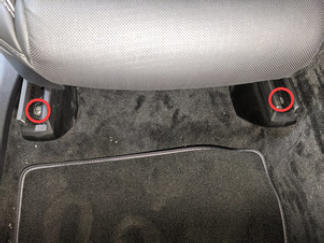

  19. Install bolts securing both RH front seat front tracks to vehicle
    NOTE: 2x patch bolts, T45P, 34 N.m, Install new bolts
    G15403428Courtesy of TESLA, INC.
  20. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
  21. Release IP service panel
    NOTE: 2x tabs, 4x datums, Release top tabs and slide rearward
    G15403429Courtesy of TESLA, INC.
    G15403430Courtesy of TESLA, INC.
    G15403431Courtesy of TESLA, INC.

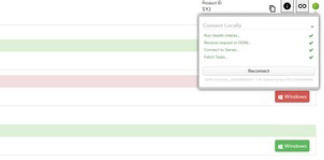

  22. Using laptop connect to vehicle with ethernet diag kit and Toolbox 3
    NOTE: Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, For local connection issues with Toolbox 3 refer to https://toolbox.teslamotors.com/articles/43695, Media converter box is powered by laptop using USB, Ethernet connection will provide communication
    G15403432Courtesy of TESLA, INC.
    G15403433Courtesy of TESLA, INC.
    G15403434Courtesy of TESLA, INC.
  23. Select "Actions" tab and search for "Service-Redeploy"
    G15403435Courtesy of TESLA, INC.
  24. Select "SERVICE CAN REDEPLOY", click "Run", and allow routine to complete
    NOTE: Select "X" at top right of window to close once complete, Routine will state pass but update will continue to run in the background, UI will show update progress
    G15403436Courtesy of TESLA, INC.
    G15403437Courtesy of TESLA, INC.
    G15403438Courtesy of TESLA, INC.
    G15403439Courtesy of TESLA, INC.
  25. Re-establish vehicle connection to Toolbox 3
    NOTE: Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)
    G15403440Courtesy of TESLA, INC.
    G15403441Courtesy of TESLA, INC.

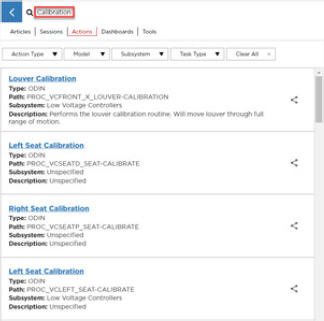

  26. Select 'Actions/Autodiag' and search for 'Calibration'
    G15403442Courtesy of TESLA, INC.

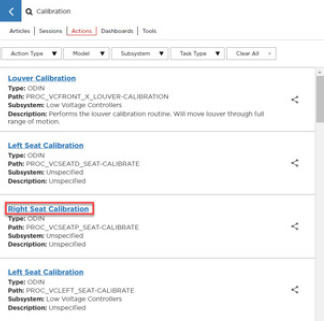

  27. Select 'PROC_VCSEATP_SEAT-CALIBRATE', click 'Run', and allow routine to complete
    NOTE: Verify no items on seat during this routine, Select 'X' at top right of window to close once complete
    G15403443Courtesy of TESLA, INC.
  28. Disconnect Toolbox 3 from vehicle and remove laptop and ethernet diag kit
    G15403444Courtesy of TESLA, INC.
    G15403445Courtesy of TESLA, INC.
    G15403446Courtesy of TESLA, INC.
  29. Install IP service panel
    NOTE: 2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP
    G15403447Courtesy of TESLA, INC.
    G15403448Courtesy of TESLA, INC.
