Frame - Seat Cushion - Driver Seat - Remove And Replace: Remove

  1. Open the LH front door and lower the front windows.
  2. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  3. With assistance, place the driver seat on a protected surface with the underside accessible.
  4. Remove the LH 1st row lap pretensioner. See Lap Pretensioner - 1st Row - LH (Remove and Replace) .
  5. Remove the driver seat LH side shield carrier. See CARRIER - LH - SIDE SHIELD - OUTBOARD - FRONT SEAT (REMOVE AND REPLACE) .

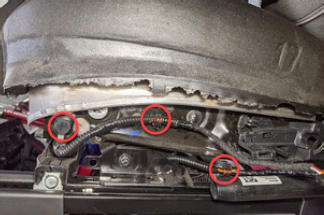

  6. Release the clips (x3) that attach the driver seat harness to the LH side seat track and frame.
    G15403066Courtesy of TESLA, INC.
  7. Remove the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  8. Remove the LH 1st row buckle. See Buckle - 1st Row - LH (Remove and Replace) .
  9. Remove the front seat inboard side shield RH carrier. See CARRIER - RH - SIDE SHIELD - INBOARD - FRONT SEAT (REMOVE AND REPLACE) .
  10. Release the seat back elastic straps (x2) from the seat frame.
    G15403068Courtesy of TESLA, INC.

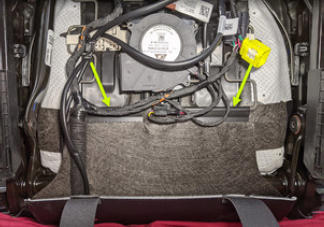

  11. Release the soft trim retainers (x2) from the seat frame.
    G15403069Courtesy of TESLA, INC.

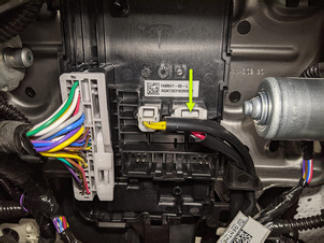

  12. Disconnect the FSC vent heat pad electrical connector from the driver seat controller.
    G15403070Courtesy of TESLA, INC.

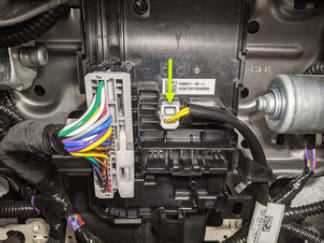

  13. Disconnect the FSB vent heat pad electrical connector from the driver seat controller.
    G15403071Courtesy of TESLA, INC.

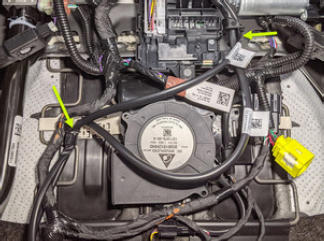

  14. Release the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly, and then remove the harnesses from the assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15403072Courtesy of TESLA, INC.

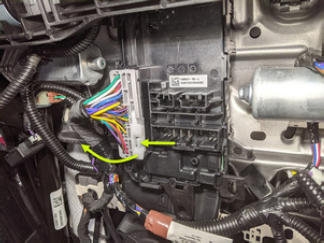

  15. Release the connector lock, and then disconnect the driver seat controller electrical connector.
    G15403073Courtesy of TESLA, INC.

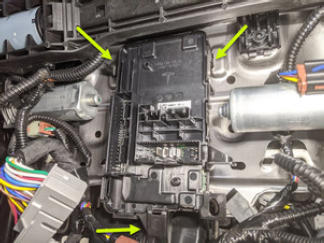

  16. Release the clips (x3) that attach the driver seat controller to the seat assembly, and then remove the controller from the assembly.
    G15403074Courtesy of TESLA, INC.

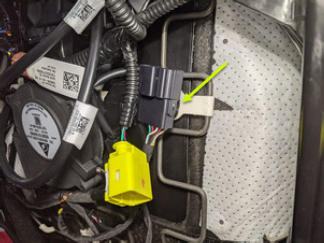

  17. Release the clip that attaches the driver seat harness to the seat frame bracket.
    G15403075Courtesy of TESLA, INC.

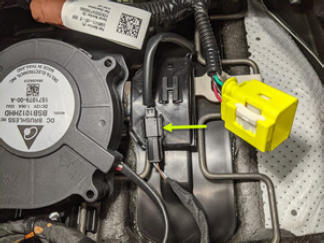

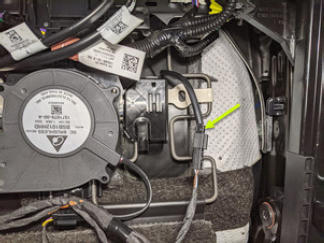

  18. Slide the OCS harness electrical connector upward to remove it from the SBR bracket, and then disconnect the electrical connector.
    G15403076Courtesy of TESLA, INC.
    G15403077Courtesy of TESLA, INC.

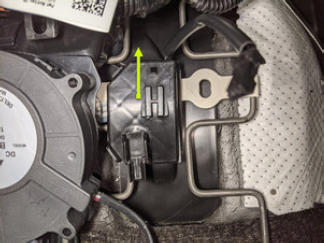

  19. Slide the SBR bracket upward to release it from the seat frame.
    G15403078Courtesy of TESLA, INC.

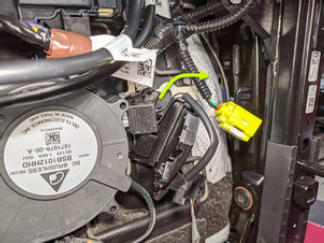

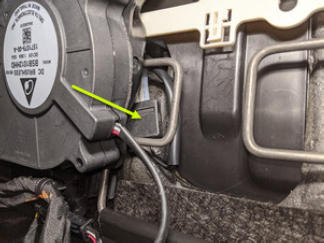

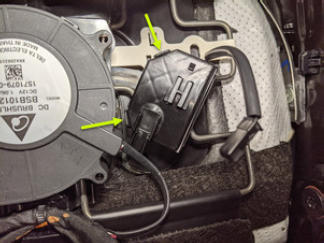

  20. Release the tabs (x2) to open the SBR bracket containing the OCS harness, and then route the harness between the seat cushion and frame.
    NOTE: Routing the harness will avoid it getting snagged when the seat foam is removed from the seat frame.
    G15403079Courtesy of TESLA, INC.
    G15403080Courtesy of TESLA, INC.
    G15403081Courtesy of TESLA, INC.

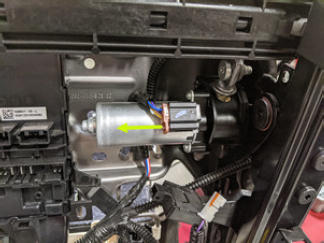

  21. Disconnect the driver seat - seat tilt motor electrical connector.
    G15403082Courtesy of TESLA, INC.

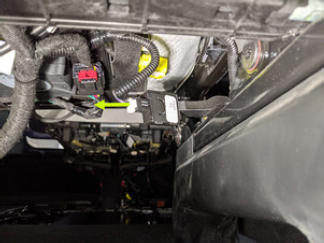

  22. Disconnect the driver seat left footwell LED electrical connector.
    G15403083Courtesy of TESLA, INC.

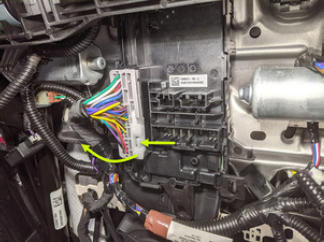

  23. Release the connector lock, and then disconnect the driver seat controller electrical connector.
    G15403084Courtesy of TESLA, INC.

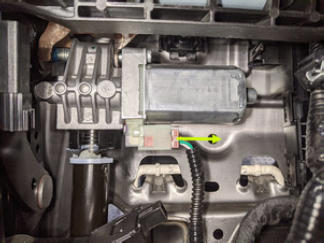

  24. Disconnect the driver seat height adjuster track motor electrical connector.
    G15403085Courtesy of TESLA, INC.

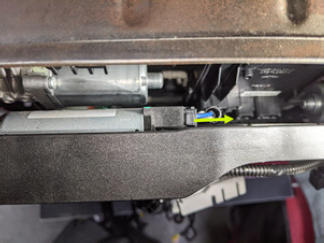

  25. Disconnect the driver seat - seat track motor electrical connector.
    G15403086Courtesy of TESLA, INC.

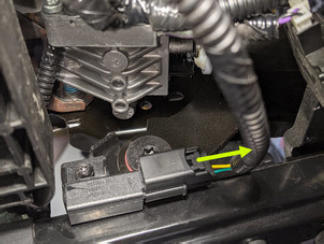

  26. Disconnect the driver seat track position sensor electrical connector.
    G15403087Courtesy of TESLA, INC.

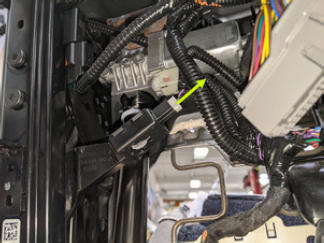

  27. Disconnect the driver seat RH footwell LED electrical connector.
    G15403088Courtesy of TESLA, INC.

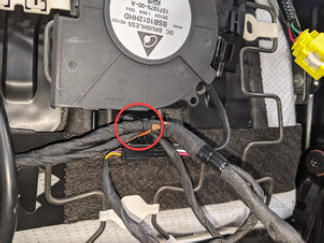

  28. Release the clip that attaches the seat harness to the cushion fan.
    G15403089Courtesy of TESLA, INC.

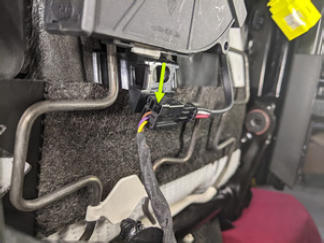

  29. Disconnect the driver seat cushion ventilation electrical connector from the cushion fan.
    NOTE: The connector is located at the below the seat cushion fan.
    G15403090Courtesy of TESLA, INC.

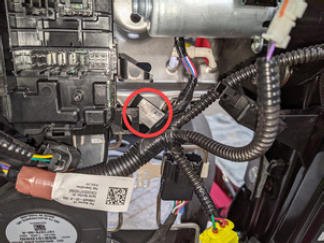

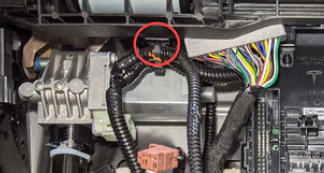

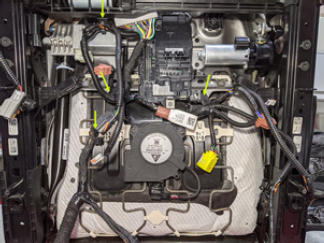

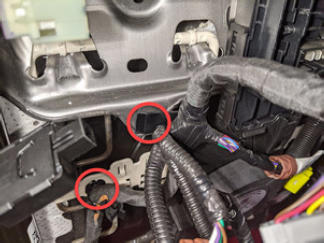

  30. Release the clips (x4) that attach the driver seat harness to the cushion frame, and then remove the harness from the seat assembly.
    G15403091Courtesy of TESLA, INC.
    G15403092Courtesy of TESLA, INC.
    G15403093Courtesy of TESLA, INC.
    G15403094Courtesy of TESLA, INC.

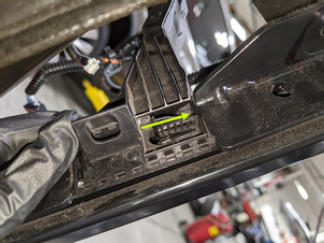

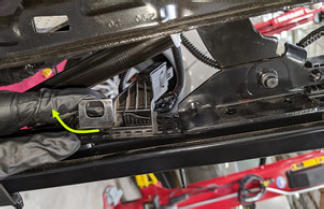

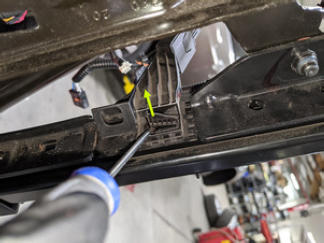

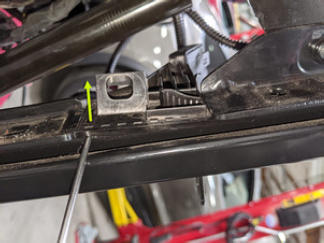

  31. Release the locking tab, and then remove the driver under seat under light from the seat assembly. Repeat this step for the RH under seat light.
    NOTE: Lift the locking tab and slide the light towards the front of the LH seat rail. Lift the opposite end of the light to remove it from the assembly.
    G15403095Courtesy of TESLA, INC.
    G15403096Courtesy of TESLA, INC.
    G15403097Courtesy of TESLA, INC.
    G15403098Courtesy of TESLA, INC.

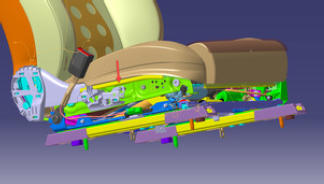

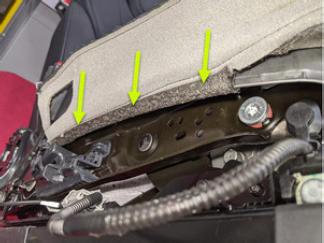

  32. Release the soft trim retainer from the inboard side of the driver seat frame.
    G15403099Courtesy of TESLA, INC.
    G15403100Courtesy of TESLA, INC.

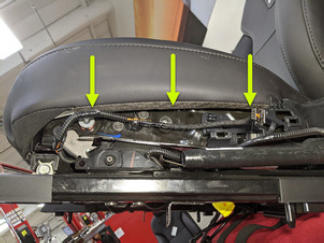

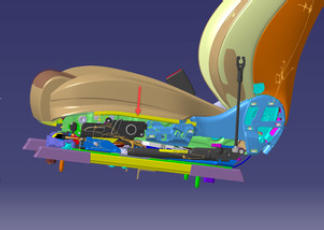

  33. Release the soft trim retainer from the outboard side of the driver seat frame.
    G15403101Courtesy of TESLA, INC.
    G15403102Courtesy of TESLA, INC.

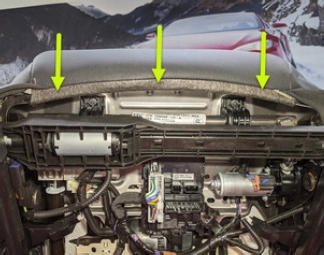

  34. Release the soft trim retainer from front end of the driver seat frame.
    G15403103Courtesy of TESLA, INC.
  35. Position the seat assembly upright.
  36. Remove the driver seat - seat cushion from the seat frame.

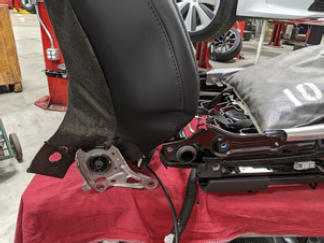

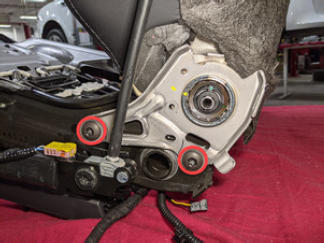

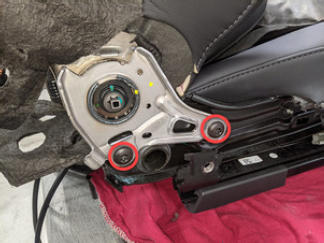

  37. With assistance, remove and discard the bolts (x4) that attach the driver back rest to the driver seat - seat cushion frame, and then remove the back rest from the frame.

    43 N.m (31.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T47P socket
    G15403104Courtesy of TESLA, INC.
    G15403105Courtesy of TESLA, INC.
    G15403106Courtesy of TESLA, INC.

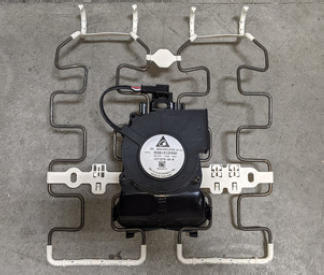

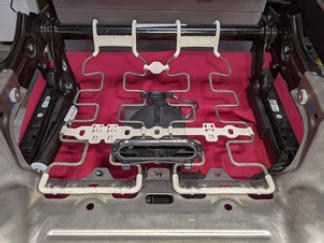

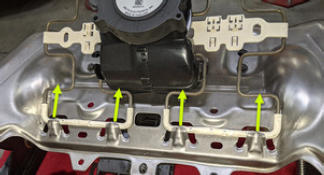

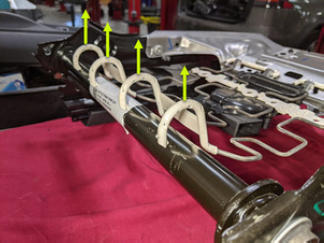

  38. Release the rear portion of the driver seat - seat cushion suspension seated on the rear cushion tube, release the tabs (x4) that attach the front portion of the suspension to the frame, and then pull the suspension away from the frame to remove it from the assembly.
    G15403107Courtesy of TESLA, INC.
    G15403108Courtesy of TESLA, INC.
    G15403109Courtesy of TESLA, INC.
    G15403110Courtesy of TESLA, INC.
    G15403111Courtesy of TESLA, INC.
