Frame - Seat Cushion - Driver Seat - Remove And Replace: Install

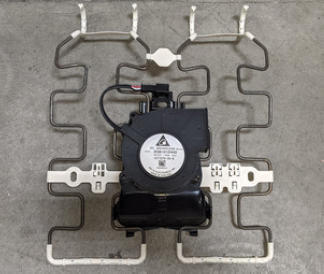

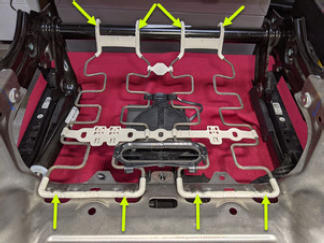

  1. Position the driver seat - seat cushion suspension onto the driver seat - seat cushion frame, secure the front portion of the suspension into the tabs (x4), and then secure the rear portion of the suspension onto the frame.
    G15403112Courtesy of TESLA, INC.
    G15403113Courtesy of TESLA, INC.

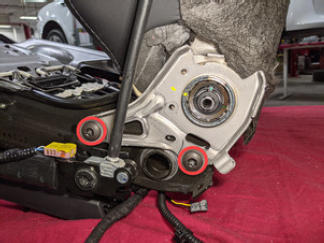

  2. With assistance, position the driver back rest onto the driver seat - seat cushion frame, and then install new bolts (x4) that attach the back rest to the frame.

    43 N.m (31.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T47P socket
    G15403114Courtesy of TESLA, INC.

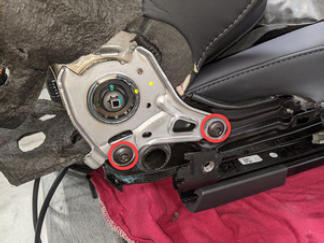

    G15403115Courtesy of TESLA, INC.

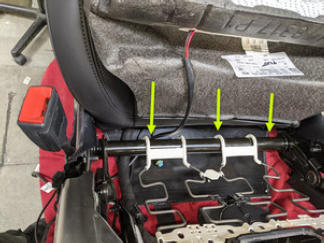

  3. Position the driver seat cushion assembly onto the seat assembly, and then feed the cushion trim between the seat back trim and seat frame to install the cushion assembly to the seat frame.
    G15403116Courtesy of TESLA, INC.
    G15403117Courtesy of TESLA, INC.

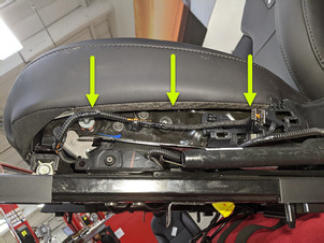

  4. Secure the soft trim retainer on the outboard side of the seat frame.
    G15403118Courtesy of TESLA, INC.

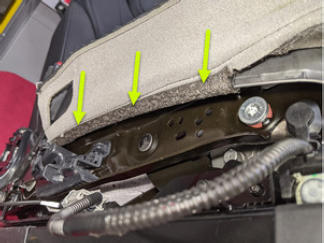

  5. Secure the soft trim retainer on the inboard side of the seat frame.
    G15403119Courtesy of TESLA, INC.
  6. Position the seat assembly onto the seat back.
    NOTE: Protect the seat from damage.
  7. Install the driver under seat light onto the seat assembly, and then engage the locking tab. Repeat this step for the RH seat light.
    NOTE: Slide the light towards the front of the LH seat rail. Position the opposite end, and then slide the light towards the rear of the driver seat rail to engage the locking tab.

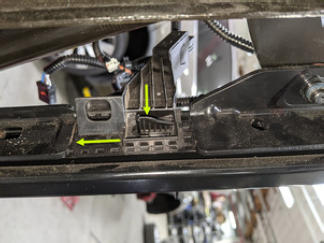

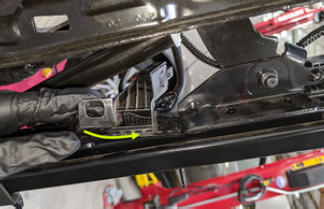

    G15403120Courtesy of TESLA, INC.
    G15403121Courtesy of TESLA, INC.
  8. Position the driver seat controller onto the seat assembly, and then fasten the clips (x3) that attach the controller to the assembly.

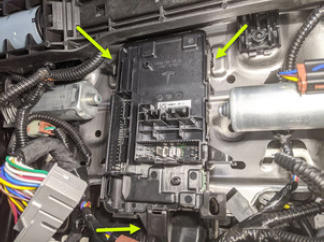

    G15403122Courtesy of TESLA, INC.

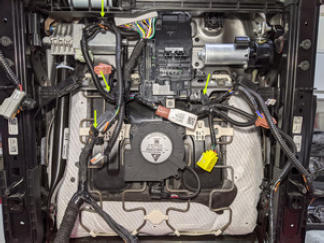

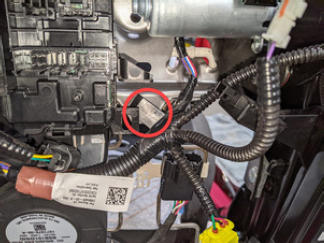

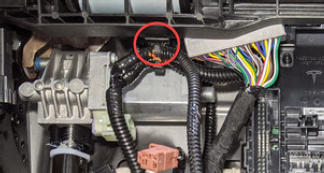

  9. Position the driver seat harness onto the driver seat cushion frame, and then secure the clips (x4) that attach the harness to the frame.
    G15403123Courtesy of TESLA, INC.
    G15403124Courtesy of TESLA, INC.

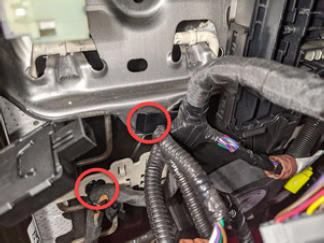

    G15403125Courtesy of TESLA, INC.
    G15403126Courtesy of TESLA, INC.

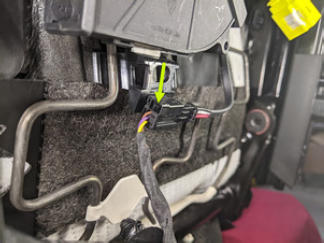

  10. Connect the driver seat cushion ventilation electrical connector to the cushion fan.
    G15403127Courtesy of TESLA, INC.
  11. Fasten the clip that attaches the seat harness to the cushion fan.

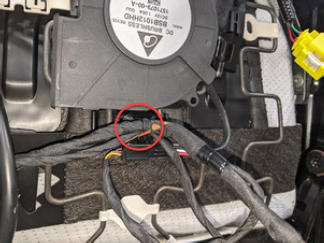

    G15403128Courtesy of TESLA, INC.

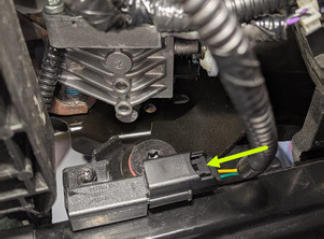

  12. Connect the driver seat track position sensor electrical connector.
    G15403129Courtesy of TESLA, INC.
  13. Connect the driver seat right footwell LED electrical connector.

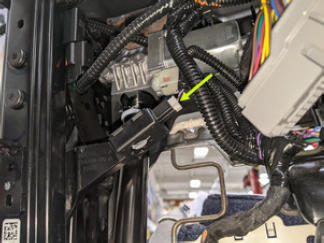

    G15403130Courtesy of TESLA, INC.

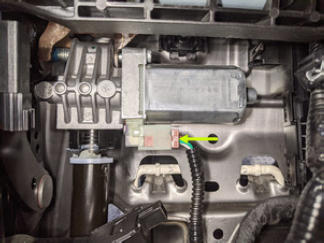

  14. Connect the driver seat height adjuster motor electrical connector.
    G15403131Courtesy of TESLA, INC.

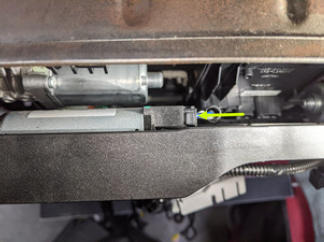

  15. Connect the driver seat track motor electrical connector.
    G15403132Courtesy of TESLA, INC.

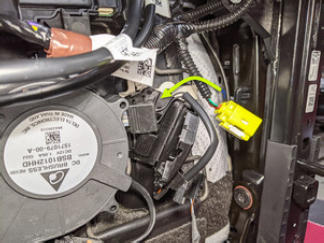

  16. Install the OCS harness into the SBR bracket, and then secure the tabs (x2).
    NOTE: Verify the tabs are fully engaged.

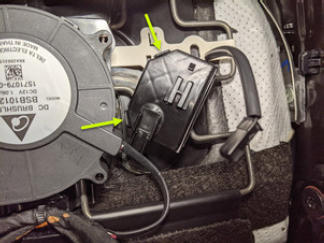

    G15403133Courtesy of TESLA, INC.
    G15403134Courtesy of TESLA, INC.
  17. Slide the SBR bracket downward to install it onto the seat frame bracket.

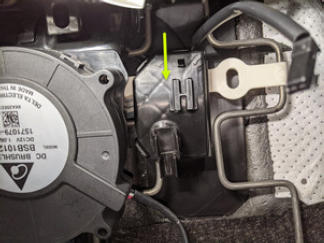

    G15403135Courtesy of TESLA, INC.

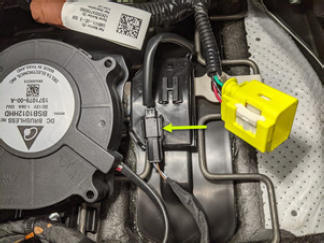

  18. Connect the OCS harness electrical connector, and then install the connector onto the SBR bracket.

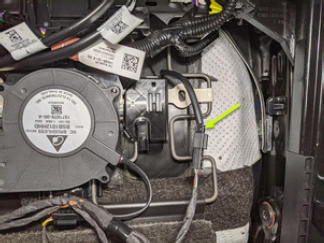

    G15403136Courtesy of TESLA, INC.
    G15403137Courtesy of TESLA, INC.
  19. Fasten the clip that attaches the driver seat harness to the seat frame bracket.
    G15403138Courtesy of TESLA, INC.

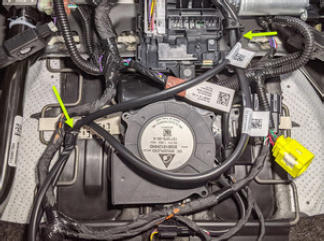

  20. Secure the clip and bracket that attach the FSC and FSB vent head pad harnesses to the seat assembly.
    NOTE: One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
    G15403139Courtesy of TESLA, INC.
  21. Connect the FSC vent heat pad electrical connector to the driver seat controller.

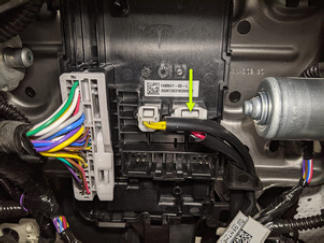

    G15403140Courtesy of TESLA, INC.

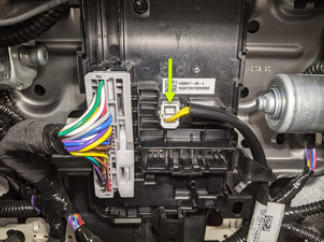

  22. Connect the FSB vent heat pad electrical connector.
    G15403141Courtesy of TESLA, INC.

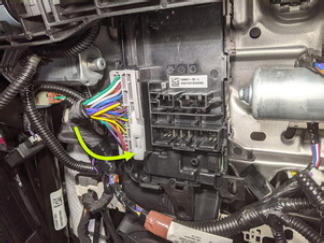

  23. Connect the driver seat controller electrical connector, and then engage the locking tab.
    G15403142Courtesy of TESLA, INC.

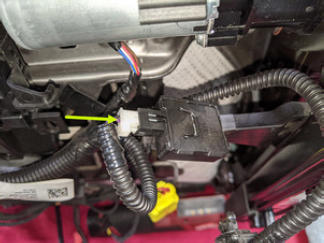

  24. Connect the driver seat LH footwell LED.
    G15403143Courtesy of TESLA, INC.

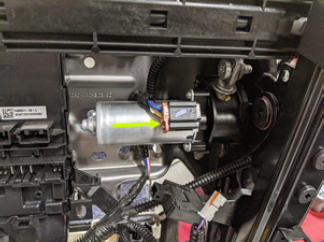

  25. Connect the driver seat - seat tilt motor electrical connector.
    G15403144Courtesy of TESLA, INC.
  26. Secure clip that attaches the driver seat harness onto the seat frame bracket.

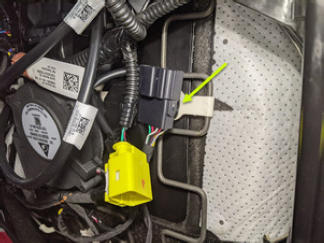

    G15403145Courtesy of TESLA, INC.

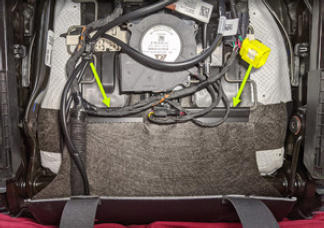

  27. Secure the soft trim retainers (x2) onto the driver seat frame.
    G15403146Courtesy of TESLA, INC.
  28. Secure the seat back elastic straps (x2) to the seat frame.
    G15403147Courtesy of TESLA, INC.

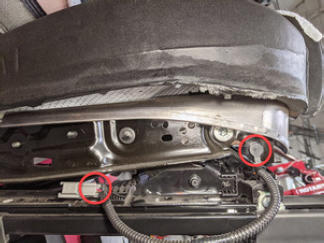

  29. Install the clips (x2) that attach the driver seat harness to the RH track and frame.
    G15403148Courtesy of TESLA, INC.

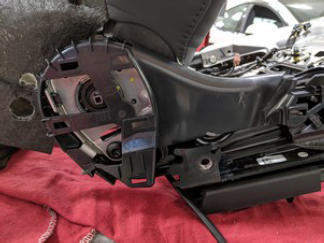

  30. Position the front seat side shield RH carrier onto the LH front seat, and then slide the carrier forward onto the frame to align the clips (x2) and tabs (x3).
    G15403149Courtesy of TESLA, INC.

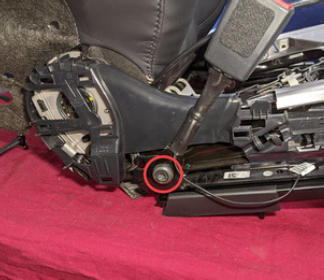

  31. Position the LH 1st row buckle onto the driver seat, and then install the bolt that attaches the buckle to the seat.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15403150Courtesy of TESLA, INC.

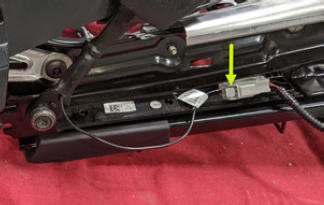

  32. Connect LH 1st row buckle electrical connector.
    G15403151Courtesy of TESLA, INC.
  33. Install the driver seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
  34. Secure the clips (x3) that attach the driver seat harness to the LH side seat track and frame.

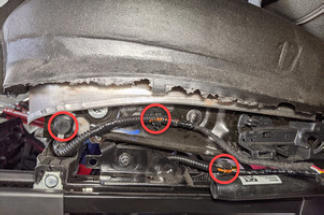

    G15403152Courtesy of TESLA, INC.

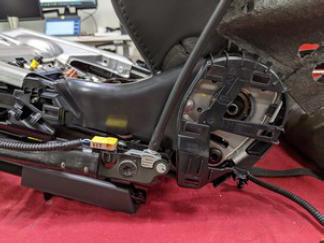

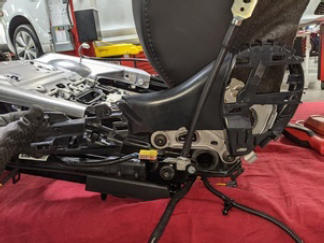

  35. Position the front seat side shield LH carrier onto the driver seat, and then secure the clips (x2) and tab (x2) that attach the side shield carrier to the seat assembly.
    NOTE: Slide the carrier forward onto the seat frame to align the clips and tabs.
    G15403153Courtesy of TESLA, INC.
    G15403154Courtesy of TESLA, INC.
  36. Position the LH 1st row lap pretensioner onto the driver seat, and then install a new bolt that attaches the pretensioner to the seat assembly.

    40 N.m (29.5 ft-lbs)

    NOTE: Apply Loctite onto the buckle bolt if reinstalling.
    NOTE: Align the guide pin onto the seat track.

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket

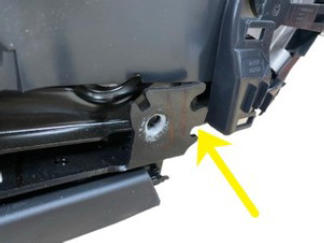

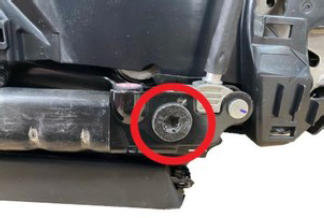

    G15403155Courtesy of TESLA, INC.
    G15403156Courtesy of TESLA, INC.
    G15403157Courtesy of TESLA, INC.
    G15403158Courtesy of TESLA, INC.

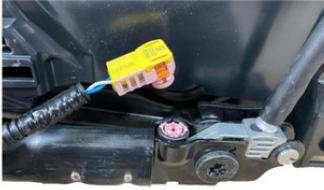

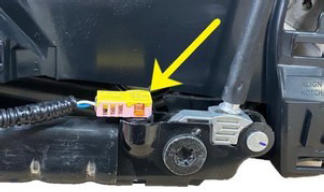

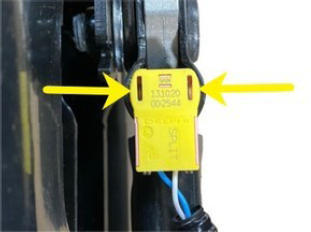

  37. Connect the LH 1st row lap pretensioner electrical connector, and then engage the connector lock.
    G15403159Courtesy of TESLA, INC.
    G15403160Courtesy of TESLA, INC.
    G15403161Courtesy of TESLA, INC.
  38. Connect the electrical harness to the back rest and cushion adjust switch assembly.
    G15403162Courtesy of TESLA, INC.

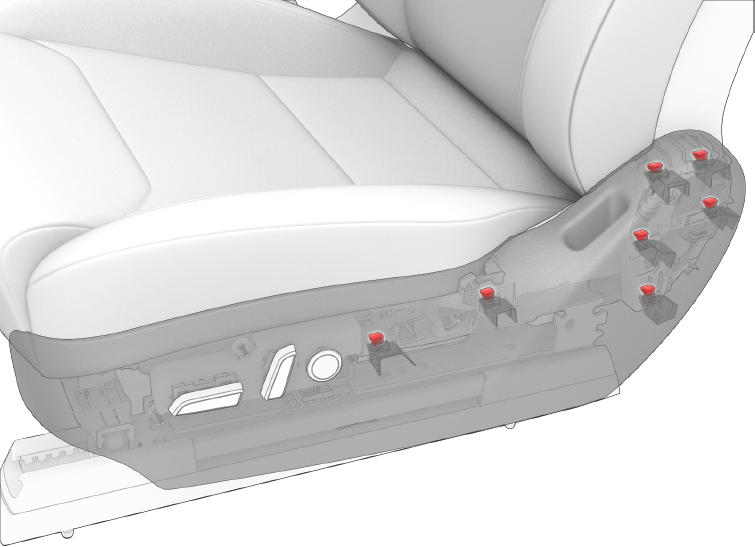

  39. Position the driver seat outboard side shield onto the seat, and then install the clips (x7) that attach the side shield to the seat.

    Tip: Apply pressure to the side shield to fully seat the clips. The side shield should sit flush against the seat cushion.

    G15403163Courtesy of TESLA, INC.
  40. Install the screw that attaches the driver seat outboard side shield to the seat assembly.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Ratchet/torque wrench
    G15403164Courtesy of TESLA, INC.
  41. Position the seat upright.
  42. Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW - LH (REMOVE AND INSTALL) .
  43. Raise the front windows and close the LH front door.
