Actuator Pulley - Recliner - 3rd Row Seat - Remove And Replace: Remove
- Open the LH falcon wing door.
- Open the liftgate.
- Fold the 2nd row 60 seat downwards.
- Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .

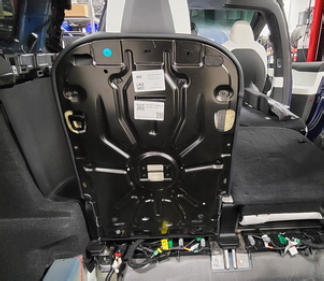

- Fold the LH 3rd row seat downwards.
- Remove the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .

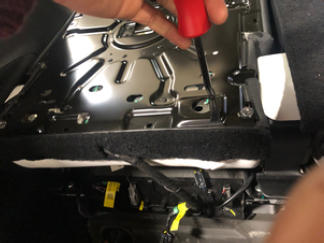

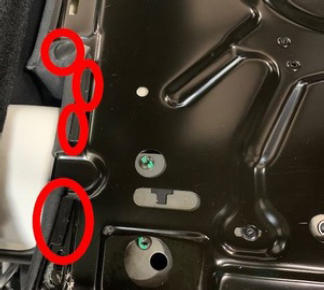

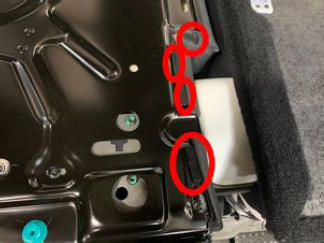

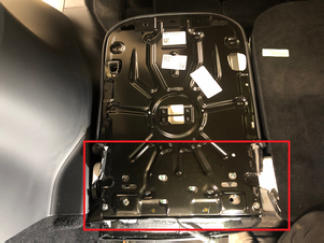

- Release the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.NOTE: Pull the tabs inward, and then upwards to release.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool

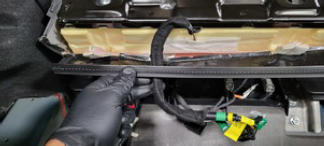

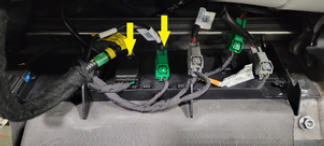

- Disconnect the LH 3rd row seat connectors (x2), and then re-route the connectors through the lower section of the upholstery.

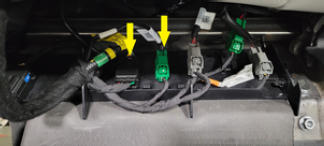

- Route the LH 3rd row seat connectors (x2) around the lower section of the upholstery, and then connect the connectors.
- Unfold the LH 3rd row seat to original position.NOTE: Leave the headrest in folded position.
- Release the J-hook clip that attaches the upper half of the LH 3rd row seat upholstery to the seat.

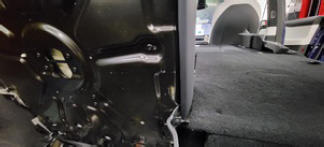

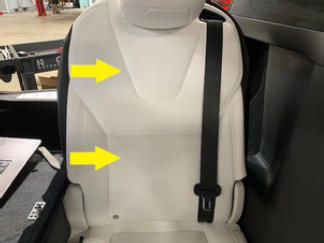

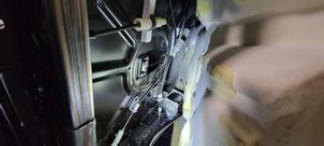

- From the 3rd row, pull the inner portion of the seat cover and foam outward to gain access to the LH 3rd row seat recliner actuator.CAUTION: Use caution to not snag the J-hooks. The actuator is located on the front side of the seat back under the upholstery and cushion assembly.NOTE: Use the fold function to feed the bottom of the seat upholstery forward.

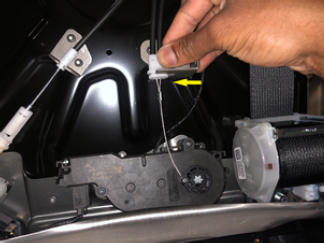

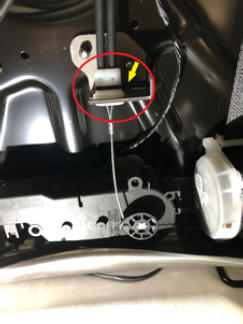

- Cut the zip tie that attaches the LH 3rd row seat recliner actuator cable to the seat bracket, and then remove the cable from the bracket.
Tip: Use of the following tool(s) is recommended:
- Diagonal cutters

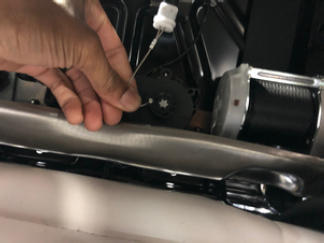

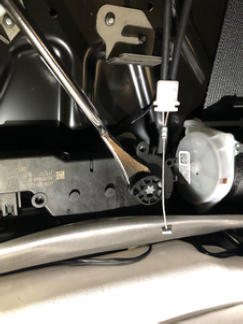

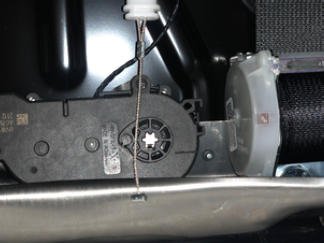

- Release the LH 3rd row seat recliner actuator cable from the actuator pulley, and then remove the pulley from the vehicle.NOTE: The pulley is directional.
Tip: Use of the following tool(s) is recommended:
- Clip pry tool
