Actuator Pulley - Recliner - 3rd Row Seat - Remove And Replace: Install

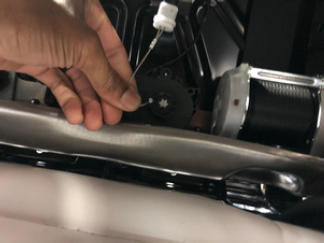

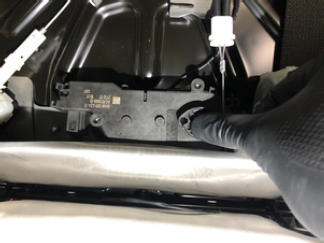

Position the LH 3rd row recliner seat actuator pulley on the vehicle, and then connect the seat recliner actuator cable to the pulley.

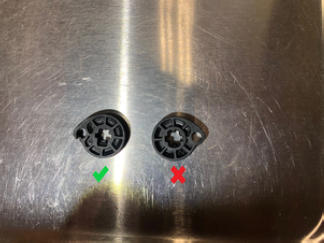

NOTE: Align the pulley to the actuator gear. The locking clip and pulley are directional.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

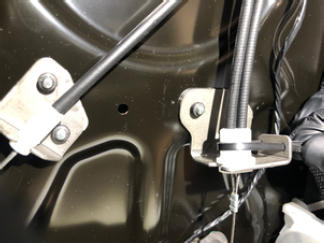

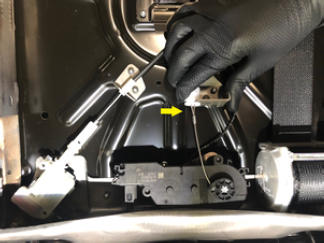

Position the LH 3rd row seat recliner actuator cable on the seat bracket, and then install the zip tie that attaches the cable to the bracket.
Tip: Use of the following tool(s) is recommended:
- Zip tie
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

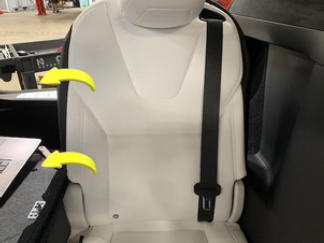

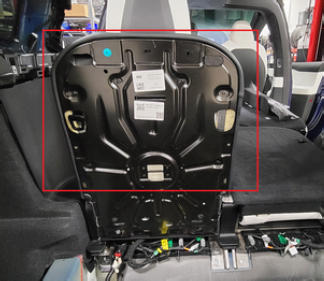

Fold the seat upholstery and cushion assembly over the seat frame.
NOTE: Use the folding function to assist with tucking the upholstery.

Courtesy of TESLA, INC.

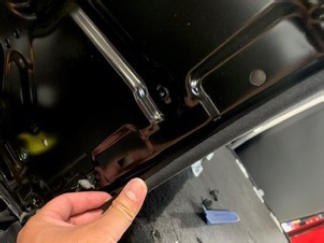

Engage the J hook clip that attaches the upper half of LH 3rd row seat upholstery to the seat.
NOTE: Fold the seat to a workable position, start at one end of the J hook clip, and then fold the clip inwards until the other end of the upholstery is fully tucked.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

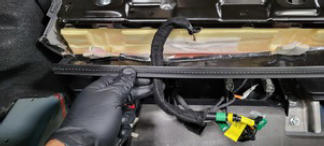

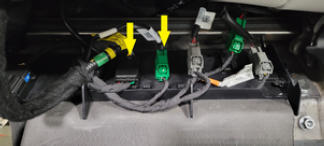

Disconnect the LH 3rd row seat connectors (x2), and then route the connectors through the seat upholstery.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

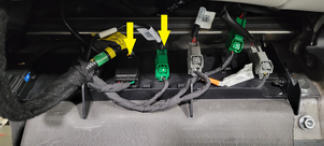

Connect the LH 3rd row seat connectors (x2).

Courtesy of TESLA, INC.

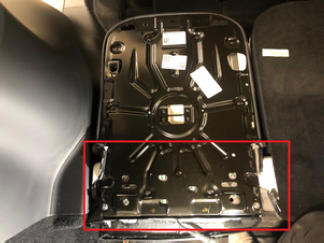

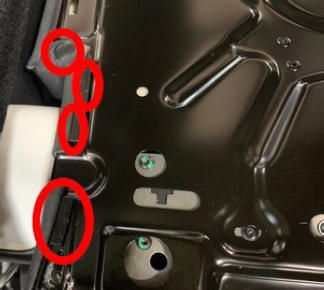

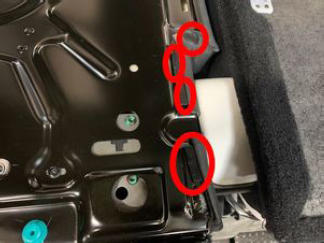

Engage the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .
Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
Unfold the LH 3rd row seat into original position.
Close the liftgate.
Unfold the 2nd row 60 seat into original position.
Close the LH falcon door.
