Actuator - Recliner - 3rd Row Seat - LH - Remove And Replace: Remove

Open the LH falcon wing door.
Open the liftgate.
Fold the 2nd row 60 seat downwards.
Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
Fold the LH 3rd row seat downwards.
Remove the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .

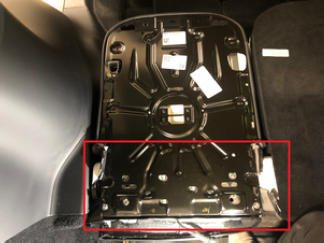

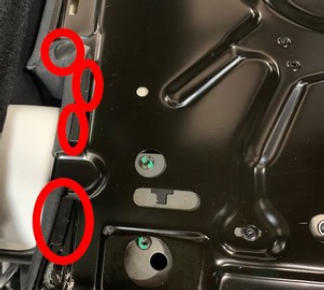

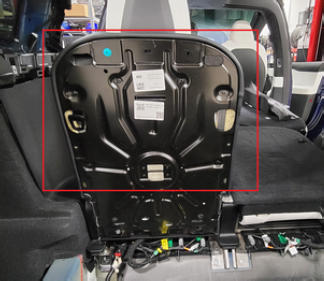

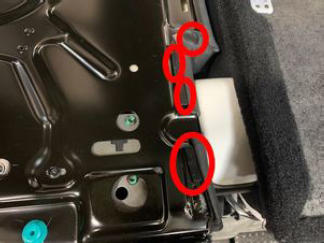

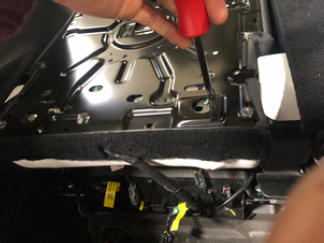

Release the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.
NOTE: Pull the tabs inward, and then upwards to release.

Tip: Use of the following tool(s) is recommended:
- Clip pry tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

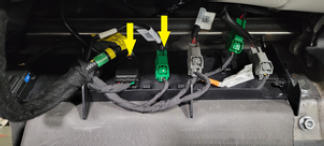

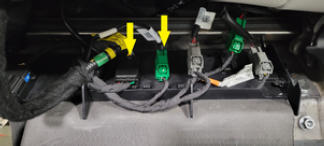

Disconnect the LH 3rd row seat connectors (x2), and then re-route the connectors through the lower section of the upholstery.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

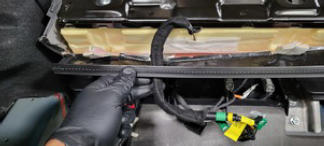

Route the LH 3rd row seat connectors (x2) around the lower section of the upholstery, and then connect the connectors.

Courtesy of TESLA, INC.
Unfold the LH 3rd row seat to original position.
NOTE: Leave the headrest in folded position.

Courtesy of TESLA, INC.
Release the J-hook clip that attaches the upper half of the LH 3rd row seat upholstery to the seat.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

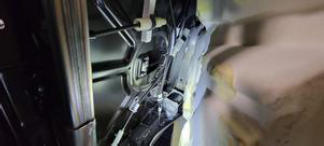

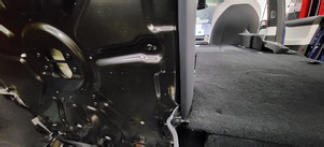

From the 3rd row, pull the inner portion of the seat cover and foam outward to gain access to the LH 3rd row seat recliner actuator.
CAUTION: Use caution to not snag the J-hooks. The actuator is located on the front side of the seat back under the upholstery and cushion assembly.

NOTE: Use the fold function to feed the bottom of the seat upholstery forward.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

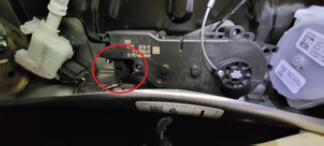

Disconnect the LH 3rd row seat recliner actuator connector.
NOTE: Depress both of the locking tabs on the side of the connector to release.

Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick
Courtesy of TESLA, INC.

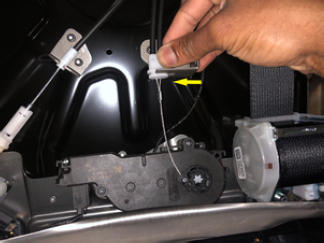

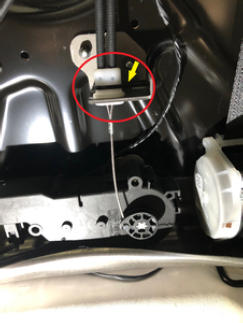

Cut the zip tie that attaches the LH 3rd row seat recliner actuator cable to the seat bracket, and then remove the cable from the bracket.
Tip: Use of the following tool(s) is recommended:
- Diagonal cutters
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

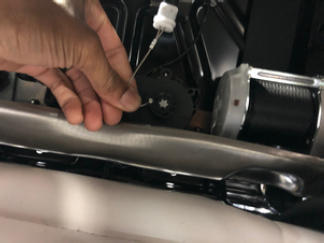

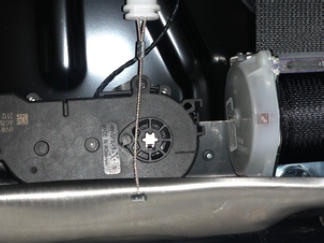

Release the LH 3rd row seat recliner actuator cable from the actuator pulley.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

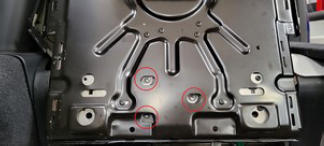

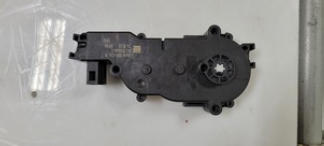

Remove the screws (x3) that attach the LH 3rd row seat recliner actuator to the seat frame, and then remove the actuator from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 4 in extension
- Ratchet/torque wrench
- Torx T25 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
