Actuator - Recliner - 3rd Row Seat - LH - Remove And Replace: Install

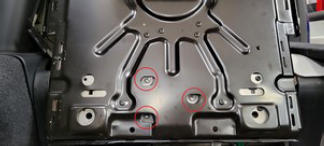

- Position the LH 3rd row seat recliner actuator on the vehicle, and then install the screws (x3) that attach the actuator to the seat frame.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 4 in extension
- Ratchet/torque wrench
- Torx T25 socket

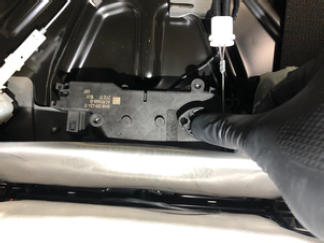

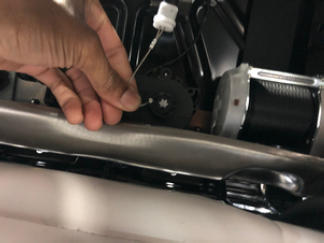

- Connect the LH 3rd row seat recliner actuator cable to the actuator pulley.

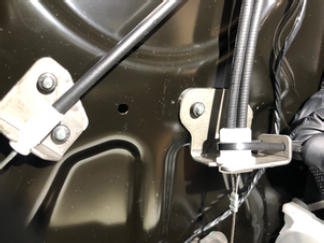

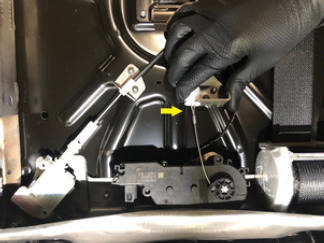

- Position the LH 3rd row seat recliner actuator cable on the seat bracket, and then install the zip tie that attaches the cable to the bracket.
Tip: Use of the following tool(s) is recommended:
- Zip tie

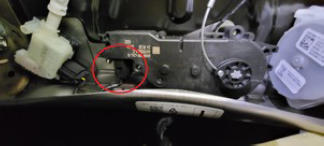

- Connect the LH 3rd row seat recliner actuator connector.
Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick

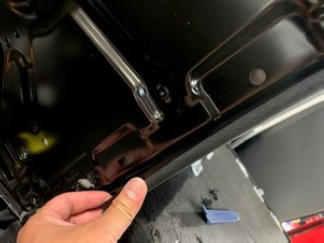

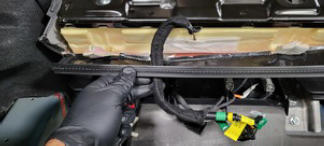

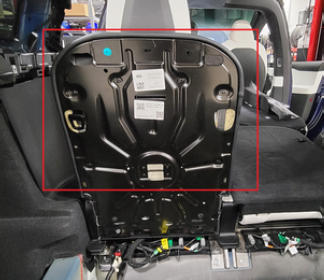

- Fold the seat upholstery and cushion assembly over the seat frame.NOTE: Use the folding function to assist with tucking the upholstery.
- Engage the J hook clip that attaches the upper half of LH 3rd row seat upholstery to the seat.NOTE: Fold the seat to a workable position, start at one end of the J hook clip, and then fold the clip inwards until the other end of the upholstery is fully tucked.
- Disconnect the LH 3rd row seat connectors (x2), and then route the connectors through the seat upholstery.

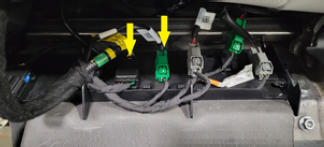

- Connect the LH 3rd row seat connectors (x2).

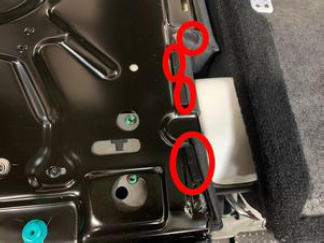

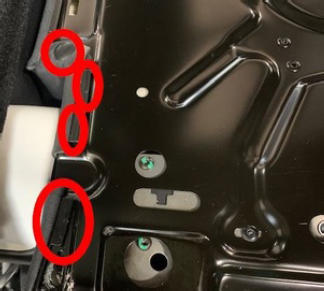

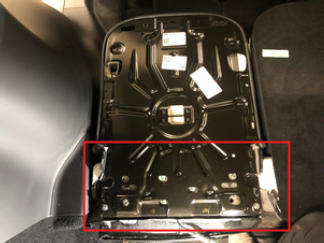

- Engage the tabs (x4), fir tree clips (x2), and J hook that attach the lower section of the LH 3rd row seat upholstery to the seat.
- Install the LH 3rd row seat back carpet. See SEAT BACK CARPET - 3RD ROW - LH (REMOVE AND REPLACE) .
- Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .

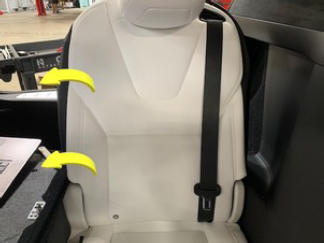

- Unfold the LH 3rd row seat into original position.
- Close the liftgate.
- Unfold the 2nd row 60 seat into original position.
- Close the LH falcon door.
