Track - Outer - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Remove

Open all the doors and lower the front windows.
Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
Remove the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .

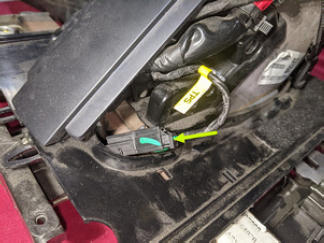

Disconnect the LH 2nd row seat outer track position sensor electrical connector.

Courtesy of TESLA, INC.

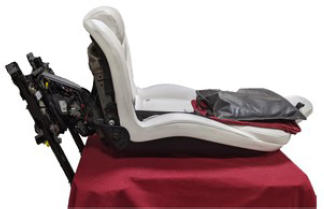

With assistance, position the LH 2nd row seat onto the seat back.
CAUTION: Protect the seat back as necessary.

NOTE: Place weight on the upper portion of seat back.

Courtesy of TESLA, INC.

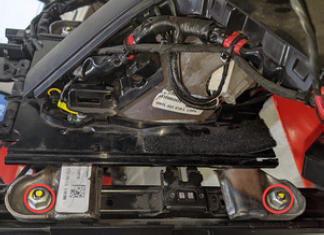

Remove the nuts (x2) that attach the LH 2nd row seat outer track to the seat assembly, maneuver the track to clear the studs, and then pull the track outward to release the seat track cable.
30 N.m (22.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

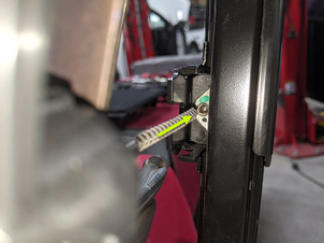

Drill the pop rivet that attaches the seat track position sensor to the LH 2nd row seat outer track.
Tip: Use of the following tool(s) is recommended:
- 4 mm drill bit
Courtesy of TESLA, INC.
Remove the seat track position sensor from the LH 2nd row seat outer track.

Courtesy of TESLA, INC.
