Track - Outer - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Install

Position the seat track position sensor onto the LH 2nd row seat outer track.

Courtesy of TESLA, INC.
Install a new pop rivet that attaches the track position sensor to the LH 2nd row seat outer track.
NOTE: Use a 3.9 mm pop rivet.

Tip: Use of the following tool(s) is recommended:
- Blind Rivet Tool - 1054713-00-A
Courtesy of TESLA, INC.

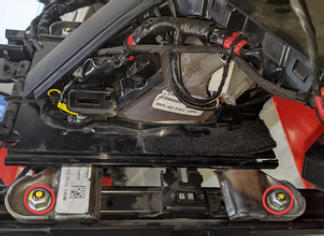

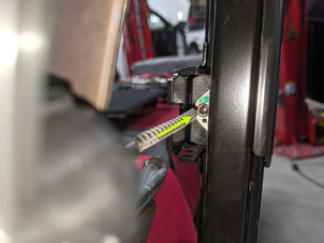

Position the LH 2nd row seat outer track onto the seat assembly, maneuver the track to engage the seat track cable, guide the studs into position, and then install the nuts (x2) that attach seat track to the seat assembly.
30 N.m (22.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
With assistance, position the LH 2nd row seat upright.

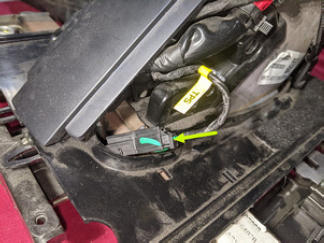

Connect the LH 2nd row seat outer track position sensor electrical connector.
NOTE: Tuck the connector under the front strip to avoid damage when installing the outer cover.

Courtesy of TESLA, INC.
Install the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .
Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
Raise the front windows and close all the doors.
