Track - Inner - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
- Remove the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .

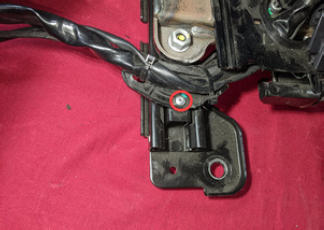

- Drill the pop rivet that attaches the seat track position sensor to the LH 2nd row seat inner track.
Tip: Use of the following tool(s) is recommended:
- 4 mm drill bit
- With assistance, position the LH 2nd row seat onto the seat back.CAUTION: Protect the seat back as necessary.NOTE: Place weight on the upper portion of seat back.

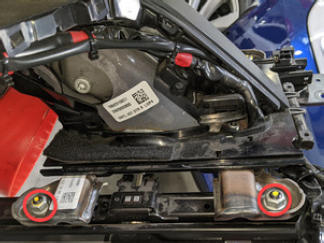

- Remove the nuts (x2) that attach the LH 2nd row seat inner track to the seat assembly, maneuver the track to clear the studs, and then pull the track outward to release the seat track cable.
30 N.m (22.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket
