Switch - Easy Entry - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Remove

  1. Remove the LH 2nd row seat - seat back cover. See COVER - SEAT BACK - 2ND ROW SEAT - LH (6 SEAT) (REMOVE AND REPLACE) .

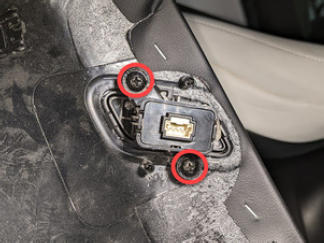

  2. Remove the screws (x2) that attach the LH 2nd row seat easy entry switch to the seat back cover, and then remove the switch from the cover.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • PH2 screwdriver
    G15402667Courtesy of TESLA, INC.
